Description

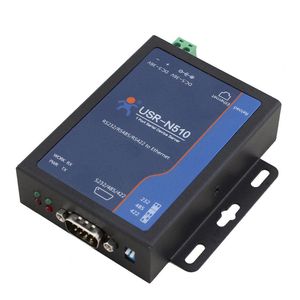

USR-N510 is a serial device server,whose function is to realize bidirectional transparent transmission between RS232/RS485/RS422 and Ethernet.
Product Description
Brand new hardware protection, high-level protection in serial port, Ethernet port and power supply, suitable for more harsh industrial environment.
Cortex-M4 kernel, industrial grade working temperature, and TCP IP protocol stack, more stable.
Ethernet 10/100Mbps, support Auto-MDI/MDIX
Support TCP Server, TCP Client, UDP, UDP Server, Httpd Client work modes
A port can correspond 2 Sockets
Support network printing
Support ModBus gateway
Support virtual serial port and provide corresponding software USR-VCOM
Serial baud rate from 600bps~230.4K bps, support 5 check methods: None, Odd, Even, Mark, Space
Support static IP, DHCP, can inquire network device via UDP broadcast protocol
Offer serial and network setting protocol, key codes instruction, user can integrate parameter setting function into their application software
Provide PC TCP/IP socket programming examples such as VB, Andriod, IOS etc.
Built-in webpage, also can customize webpage for users.
Reload button, one key to restore default settings.
RJ45 with Link/Data indicator light, built-in isolation transformer and 2KV electromagnetic isolation.
The global unique MAC address bought from IEEE (begin with D8-B0-4C), user can define MAC address.
Support upgrade firmware via network
Support ARP of server domain name
Support changing of network port(default 80)
Support keep alive, rapidly detect dead links.
Support account and password, can be used to webpage login and network settings.
Serial work as RS232/RS485/RS422, DB9 female, provide RS485/RS422 converter
Support DC adapter and 5.08-2 terminal power supply, wide range 5~36V
Support UDP broadcast function
