Description
Description:
-LMFLUU series Linear Ball Bearing Slide Block Units are complementary to linear ball bearings.
-They usually consist of a light-weight, aluminum housing to provide high strength and stiffness.
-Compact design with High load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
-Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
-It is great for 3D printer, CNC, and other applications.
Specification:
Bearing No.: LMF12LUU
Bearing Ball Material: Chromium Steel
Outer Shell Material: Chromium Steel
Cage Material: Nylon
Nominal Shaft Diameter (dr): 12mm
Outer Diameter (D): 21mm
Total Length (L): 57mm
Mounting Hole Dia.: 4.6 x 7mm / 0.18" x 0.28" (d1*d2)
Pitch Circle Dia. (PCD): 32mm / 1.26"
Flange Size: 6 x 42mm / 0.24" x 1.65" (H*D1)
Ball Circuit: 4
Static Load Capacity (Cor): 1.570kN
Dynamic Load Capacity (Cr): 0.813kN
Package Content:
1 x Linear Ball Bearings

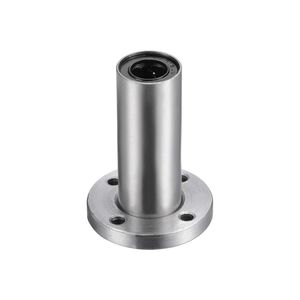

uxcell 12mm Linear Ball Bearings LM12UU Extra Long Round Flange LMF12LUU, 12mm Bore, 21mm OD, 57mm Length
