Description
1.Uxcell provides LMFUU series Round Flange Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.
2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
4.It is great for 3D printer, CNC, and other applications.
Specification:
Bearing No.: LM10UU
Bearing Ball Meterial: Chromium Steel
Outer Shell Meterial: Chromium Steel
Cage Meterial: Nylon
Nominal Shaft Diamter (dr): 10mm
Outer Diameter (D): 19mm
Total Length (L): 55mm
Mounting Hole Dia.: 4.3 x 7.6mm / 0.17 x 0.3inch (d1*d2);
Pitch Circle Dia. (PCD): 29mm / 1.14inch;
Flange Size: 6 x 40mm / 0.24 x 1.57inch (H*D1)
Ball Circuit: 4
Static Load Capacity (Cor): 1.1kN
Dynamic Load Capacity (Cr): 0.588kN
Number of Pack: 2 Pcs
2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
4.It is great for 3D printer, CNC, and other applications.
Specification:
Bearing No.: LM10UU
Bearing Ball Meterial: Chromium Steel
Outer Shell Meterial: Chromium Steel
Cage Meterial: Nylon
Nominal Shaft Diamter (dr): 10mm
Outer Diameter (D): 19mm
Total Length (L): 55mm
Mounting Hole Dia.: 4.3 x 7.6mm / 0.17 x 0.3inch (d1*d2);
Pitch Circle Dia. (PCD): 29mm / 1.14inch;
Flange Size: 6 x 40mm / 0.24 x 1.57inch (H*D1)
Ball Circuit: 4
Static Load Capacity (Cor): 1.1kN
Dynamic Load Capacity (Cr): 0.588kN
Number of Pack: 2 Pcs

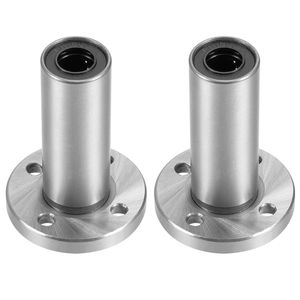

uxcell LM10UU Extra Long Round Flange Linear Ball Bearings, 10mm Bore Dia, 19mm OD, 55mm Length Pack of 2
