VeLLBox HDMI HD Extender 70m by Cat5e/6x1 Support resolution up to 1080p
This HD BaseT HDMI Extender extends an HD source with multi-channel digital audio, video and IR to the display
And the transmission distance between the source and display can be up to 70m (230ft) over one CAT6 cable
Built-in IR extender function that means using the remote-controller of the source to control IR from the display side
Easily uses to control the source by IR extender function when the display is away from the source

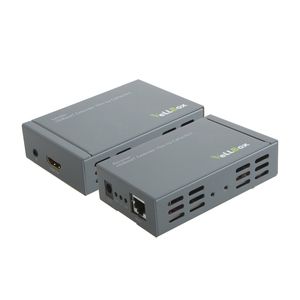

The main unit consists of one sender and one receiver, and they are small in size 100x65x25mm
Along with two 5V/2AUniversal Power Adapters
When you need to extend the transmission distance up to 70m (approximate230ft), please better choose CAT 6 or CAT 7cable

Feature
Supports HDCP
Supports 3D pass-through
Supports CEC pass-through
Supports 1080p@60Hz@48bit pixels
Supports uncompressed HDMI signal
Supports uncompressed audio such as LPC
Supports HDMI resolution up to 1080P@60Hz
CAT5e/6 cable follows the standard of IEEE-568B
Enables HDMI 10.2Gbps over a single 70m Cat5e/6 cable
Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth
Supports compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD

Operation
Connect the HDMI source such as DVD, PS3, STB to the input of Sender
Connect the output of Receiver to HDTV display
Connect the Sender and Receiver with a Cat5e/6 cable up to 70m
Plug one power supply into the Sender and the other into the Receiver
Power on the HDTV display and HDMI source

Free Warranty
VeLLBox provides 1 year free warranty with high quality after-sales service
