Description

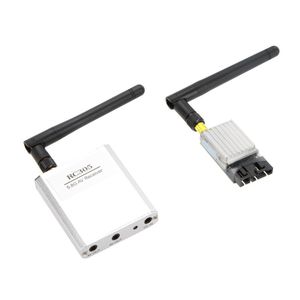

The kit includes a very small 5.8Ghz 8 channels transmitter and 5.8Ghz receiver. It is perfect for FPV model applications, very small and light to mount anywhere and has a very long range up to 2km (2000m) with high gain antennas. It includes all cables to connect to power sources and video sources, just use your own camera of choice.
Features:
Small size and lightweight.
Specifications:
Wireless transmitter
Model no. TS58200
5.8G 200mW 8 channel AV transmitter
Modulation Wideband FM modulation
Video format NTSC / PAL
Output impedance 50Ohm
Output power 22dBm (21~23dBm)
Channel frequency CH1 5.705/ CH2 5.685/ CH3 5.665/ CH4 5.645
CH5 5.885/ CH6 5.905/ CH7 5.925/ CH8 5.945 GHz
Operating voltage 12V (7.0-15V)
Supply current 150mA
Operating temperature -10 ~ +85℃
Video band width 8.0MHz
Audio carrier frequency 6.5MHz
Video input level 1.0Vp-p (0.8~1.2Vp-p)
Video input impedance 75ohm
Audio input level 0.5~2.0Vp-p
Audio input impedance 10Kohm
Antenna connector RP-SMA connector
Wireless receiver
Model no. RC305
Receiving frequency 5705 ~ 5945MHz; 8 Channels
Receiving sensitivity -90dBm
Frequency control Built-in frequency and phrase lock loop
Double lines AV output Analog AV signal output
Video output 1Vp-p 75ohm
Audio output 1Vp-p 600ohm
Antenna connectors Inside the needle
Power supply voltage 6.5V ~ 12V
Supply current 150mA
Package List:
1 * RC305 Wireless Receiver
1 * TS58200 5.8G 200mW 8CH AV Transmitter
2 * 2dBi 5.8GHz Omni-direction Antenna
1 * Power Cable for Transmitter
1 * Power Cable for Receiver
1 * 3.5mm Mini AV to 3RCA Female Cable Set
2 * Instruction Manual (English)
Features:
Small size and lightweight.
Specifications:
Wireless transmitter
Model no. TS58200
5.8G 200mW 8 channel AV transmitter
Modulation Wideband FM modulation
Video format NTSC / PAL
Output impedance 50Ohm
Output power 22dBm (21~23dBm)
Channel frequency CH1 5.705/ CH2 5.685/ CH3 5.665/ CH4 5.645
CH5 5.885/ CH6 5.905/ CH7 5.925/ CH8 5.945 GHz
Operating voltage 12V (7.0-15V)
Supply current 150mA
Operating temperature -10 ~ +85℃
Video band width 8.0MHz
Audio carrier frequency 6.5MHz
Video input level 1.0Vp-p (0.8~1.2Vp-p)
Video input impedance 75ohm
Audio input level 0.5~2.0Vp-p
Audio input impedance 10Kohm
Antenna connector RP-SMA connector
Wireless receiver
Model no. RC305
Receiving frequency 5705 ~ 5945MHz; 8 Channels
Receiving sensitivity -90dBm
Frequency control Built-in frequency and phrase lock loop
Double lines AV output Analog AV signal output
Video output 1Vp-p 75ohm
Audio output 1Vp-p 600ohm
Antenna connectors Inside the needle
Power supply voltage 6.5V ~ 12V
Supply current 150mA
Package List:
1 * RC305 Wireless Receiver
1 * TS58200 5.8G 200mW 8CH AV Transmitter
2 * 2dBi 5.8GHz Omni-direction Antenna
1 * Power Cable for Transmitter
1 * Power Cable for Receiver
1 * 3.5mm Mini AV to 3RCA Female Cable Set
2 * Instruction Manual (English)
Walmeck 5.8G 200mW FPV Video Audio 8CH AV Transmitter TX 5.8GHz RX Receiver Set 2KM 2000M
Price is below average
Current Price
$28.62
Average
$29.11
Min Price
$28.62
Max Price
$29.85
Price dynamics
2%
Description
The kit includes a very small 5.8Ghz 8 channels transmitter and 5.8Ghz receiver. It is perfect for FPV model applications, very small and light to mount anywhere and has a very long range up to 2km (2000m) with high gain antennas. It includes all cables to connect to power sources and video sources, just use your own camera of choice.
Features:
Small size and lightweight.
Specifications:
Wireless transmitter
Model no. TS58200
5.8G 200mW 8 channel AV transmitter
Modulation Wideband FM modulation
Video format NTSC / PAL
Output impedance 50Ohm
Output power 22dBm (21~23dBm)
Channel frequency CH1 5.705/ CH2 5.685/ CH3 5.665/ CH4 5.645
CH5 5.885/ CH6 5.905/ CH7 5.925/ CH8 5.945 GHz
Operating voltage 12V (7.0-15V)
Supply current 150mA
Operating temperature -10 ~ +85℃
Video band width 8.0MHz
Audio carrier frequency 6.5MHz
Video input level 1.0Vp-p (0.8~1.2Vp-p)
Video input impedance 75ohm
Audio input level 0.5~2.0Vp-p
Audio input impedance 10Kohm
Antenna connector RP-SMA connector
Wireless receiver
Model no. RC305
Receiving frequency 5705 ~ 5945MHz; 8 Channels
Receiving sensitivity -90dBm
Frequency control Built-in frequency and phrase lock loop
Double lines AV output Analog AV signal output
Video output 1Vp-p 75ohm
Audio output 1Vp-p 600ohm
Antenna connectors Inside the needle
Power supply voltage 6.5V ~ 12V
Supply current 150mA
Package List:
1 * RC305 Wireless Receiver
1 * TS58200 5.8G 200mW 8CH AV Transmitter
2 * 2dBi 5.8GHz Omni-direction Antenna
1 * Power Cable for Transmitter
1 * Power Cable for Receiver
1 * 3.5mm Mini AV to 3RCA Female Cable Set
2 * Instruction Manual (English)
Features:
Small size and lightweight.
Specifications:
Wireless transmitter
Model no. TS58200
5.8G 200mW 8 channel AV transmitter
Modulation Wideband FM modulation
Video format NTSC / PAL
Output impedance 50Ohm
Output power 22dBm (21~23dBm)
Channel frequency CH1 5.705/ CH2 5.685/ CH3 5.665/ CH4 5.645
CH5 5.885/ CH6 5.905/ CH7 5.925/ CH8 5.945 GHz
Operating voltage 12V (7.0-15V)
Supply current 150mA
Operating temperature -10 ~ +85℃
Video band width 8.0MHz
Audio carrier frequency 6.5MHz
Video input level 1.0Vp-p (0.8~1.2Vp-p)
Video input impedance 75ohm
Audio input level 0.5~2.0Vp-p
Audio input impedance 10Kohm
Antenna connector RP-SMA connector
Wireless receiver
Model no. RC305
Receiving frequency 5705 ~ 5945MHz; 8 Channels
Receiving sensitivity -90dBm
Frequency control Built-in frequency and phrase lock loop
Double lines AV output Analog AV signal output
Video output 1Vp-p 75ohm
Audio output 1Vp-p 600ohm
Antenna connectors Inside the needle
Power supply voltage 6.5V ~ 12V
Supply current 150mA
Package List:
1 * RC305 Wireless Receiver
1 * TS58200 5.8G 200mW 8CH AV Transmitter
2 * 2dBi 5.8GHz Omni-direction Antenna
1 * Power Cable for Transmitter
1 * Power Cable for Receiver
1 * 3.5mm Mini AV to 3RCA Female Cable Set
2 * Instruction Manual (English)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
