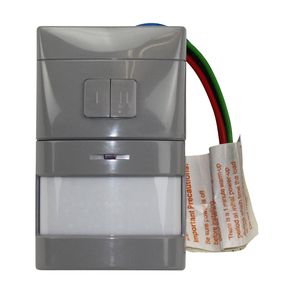

Watt Stopper Wi-300-G Gray 120/277Vac Pir Passive Infrared Automatic Wall Switch

the pw100 is a watt stopper passive infrared PIR wall switch sensor that turns lights on and off based on occupancy the pw100 replaces existing wall switches and fits in a single gain junction box wiring up the pw100 is simple on the pw100 you have your black wire which wires up to your incoming hot you have your red wire which is connected to the lighting load then you have the green wire which is connected to the ground so now we will wire up the pw100 please be sure that all power is disconnected to the wall box before starting your wiring connections first we will take the black wire from the sensor and wire that to our incoming hot next we will take the red wire from the sensor and wire that to load and last we'll take the green wire from the sensor and wire that to the ground the next step will be to install the sensor into your wall box turn power on and wait 30 seconds for the s
