X10 AM486 Appliance Module

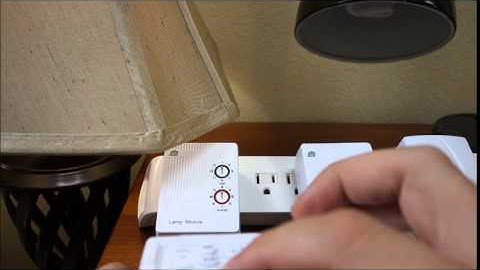

to begin controlling your x10 modules ensure that each module is set to the same house code as the mini timer shown in the top right hand corner of the LCD screen to change the house code of the mini timer set the mode switch to house code set and press the top time rocker to advance to the desired code set each module to any unit color between 1 and 8 since the MT 13:8 defaults to house code a we'll set our x10 lamp module to a 1 in our appliance module to a 8 for this example set the mode switch on the mini timer to the run position before programming a timed event ensure that you can control each module directly from the MT 13a to turn on a particular module set the selector switch to 1 through 4 or 5 through 8 and press the on button corresponding to the unit number you set on the module if that particular module is a dimmable wall switch or lamp module you can now press and hold th
