Description
General Information Typical Max Motor Horsepower2 HP Typical Full Load Motor Nameplate Current Rating20 Amps @ 115 Volts 20/10 Amps @ 115/230 Volts Switch Rating & Permissible Maximum Start Capacitor Current40 Amps Start Circuit Voltage115 Cut Out Voltage (Typical)165 Volts Cut In Voltage (Typical)37 Volts Package Style15 Catalog NumberIR40-165 IR-40-165 Part Number(s)4-7-51040-15-U03 475104015U03 475104015U01 (Old, Obsolete Part Number) 475104015U0K (Kit) Leeson 002789.02 Operating Temperature-40°C to 65 °C (-40 °F to 149°F) for operation between 65°C and 85°C (149°F and 185°F), consult factory. Operating Voltage115 Vac SINPAC Switch: 90-130 Vac. For dual voltage motor equipped with center-tapped main winding: 90-130 Vac or 180-265 Vac. Diameter1.83" Max Length3.38" Max Connections4 - 1/4" Male Quick Connect tabs/spade terminals

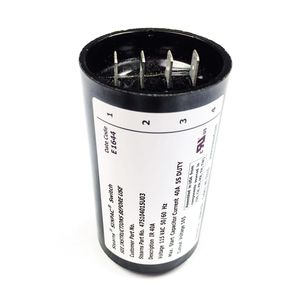

475104015U03 Stearns SINPAC Instant Reversing Switch, 115V, 40A, 165V Cutout
Current Price
$144.97
Average
$144.97
Min Price
$144.97
Max Price
$144.97
Price dynamics
0%
Description
General Information Typical Max Motor Horsepower2 HP Typical Full Load Motor Nameplate Current Rating20 Amps @ 115 Volts 20/10 Amps @ 115/230 Volts Switch Rating & Permissible Maximum Start Capacitor Current40 Amps Start Circuit Voltage115 Cut Out Voltage (Typical)165 Volts Cut In Voltage (Typical)37 Volts Package Style15 Catalog NumberIR40-165 IR-40-165 Part Number(s)4-7-51040-15-U03 475104015U03 475104015U01 (Old, Obsolete Part Number) 475104015U0K (Kit) Leeson 002789.02 Operating Temperature-40°C to 65 °C (-40 °F to 149°F) for operation between 65°C and 85°C (149°F and 185°F), consult factory. Operating Voltage115 Vac SINPAC Switch: 90-130 Vac. For dual voltage motor equipped with center-tapped main winding: 90-130 Vac or 180-265 Vac. Diameter1.83" Max Length3.38" Max Connections4 - 1/4" Male Quick Connect tabs/spade terminals
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
