About VELLEDQ
VELLEDQ is a focus on precision connectors, industrial automation and professional network components and innovative integrated enterprise, specializing in the development, production and sales of electrical connections and other accessories. Products include precast connectors, field wiring connectors, distribution boxes, splitters, distributors, etc. Can easily and quickly connect various sensors, actuators, and power supplies on the industrial site.
Product Overview

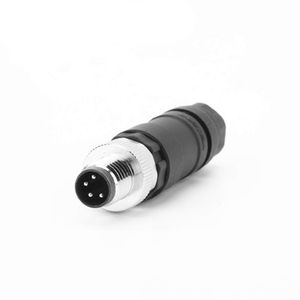

The Field-wireable Connector M8-M04T, it applies to Data Communication and I/O connection on-site installation, with standard M8 male thread, circular hole interface. Widely used in data transmission, micro-electrical transmission, the fieldbus protocol.
Product Features
Connector type: Circular connector
Field-wireable: Male
Suppression: 4-pole
Clamping range(cable exit): PG7 3.5-5.0MM
Single core crimp: 0.14-0.5mm
Wiring method: Max 0.75mm
Rated voltage: 30V
Current per contact ( 40 °C ): Max 3A
Temperature range ( Insulator / Wire ): -40 to 85°C / -30 to 80°C
Protection Class: IP67 when pluggde and screwd down
Shielding Function: No
Locking type: Screw teminals
Connector contacts: Brass with gold plated
Housing materal: Flame retardant plastic
Packing List
1 x M8 Male Sensor Connector
