Description
Features:
- Solenoids are similar to electromagnets: composed of a large coil of copper wire with an armature (a cylinder of metal) in the center.
- When the coil is powered, the armature is pulled into the center of the coil.
- This allows the solenoid to pull (from one end) or push (from the other).
- This means when energized with up to 12Vdc, the solenoid moves and when the voltage is removed, it springs back to the original position.
Specification:
Rated Voltage & Current : DC12V 0.92A
Power : 11.07W
Action Form : Pull Type
Stroke & Force : 10mm, 400g
BodySize : 35 x 25 x 20mm/ 1.4"" x 1"" x 0.79""(L*W*H)
Plunger Size : 25 x 7mm/ 1""x 0.28""(L*Max.D)
Cable Length : 29cm/ 11.4""
Material : Metal, Electronic Parts
Weight : 97g
Package Content : 1 x Open FrameSolenoid Electromagnet
Notice:
* Please take the electromagnet put down gently when you install it.
* The screw thread can make a corresponding change according to your demand.
* This product is small in size, please pay attention to in the process of using electricity, so as not to damage the electromagnet.
Sincere after-sales service:
✔Yootop has always attached great importance to the customer's buying experience.
✔We ensure that all the pictures in our store are in-kind shooting.
✔All products are fulfilled by Amazon, but we offer refunds for products with quality issues.
✔Contact us if you meet any problem. We will help you with our best.
- Solenoids are similar to electromagnets: composed of a large coil of copper wire with an armature (a cylinder of metal) in the center.
- When the coil is powered, the armature is pulled into the center of the coil.
- This allows the solenoid to pull (from one end) or push (from the other).
- This means when energized with up to 12Vdc, the solenoid moves and when the voltage is removed, it springs back to the original position.
Specification:
Rated Voltage & Current : DC12V 0.92A
Power : 11.07W
Action Form : Pull Type
Stroke & Force : 10mm, 400g
BodySize : 35 x 25 x 20mm/ 1.4"" x 1"" x 0.79""(L*W*H)
Plunger Size : 25 x 7mm/ 1""x 0.28""(L*Max.D)
Cable Length : 29cm/ 11.4""
Material : Metal, Electronic Parts
Weight : 97g
Package Content : 1 x Open FrameSolenoid Electromagnet
Notice:
* Please take the electromagnet put down gently when you install it.
* The screw thread can make a corresponding change according to your demand.
* This product is small in size, please pay attention to in the process of using electricity, so as not to damage the electromagnet.
Sincere after-sales service:
✔Yootop has always attached great importance to the customer's buying experience.
✔We ensure that all the pictures in our store are in-kind shooting.
✔All products are fulfilled by Amazon, but we offer refunds for products with quality issues.
✔Contact us if you meet any problem. We will help you with our best.

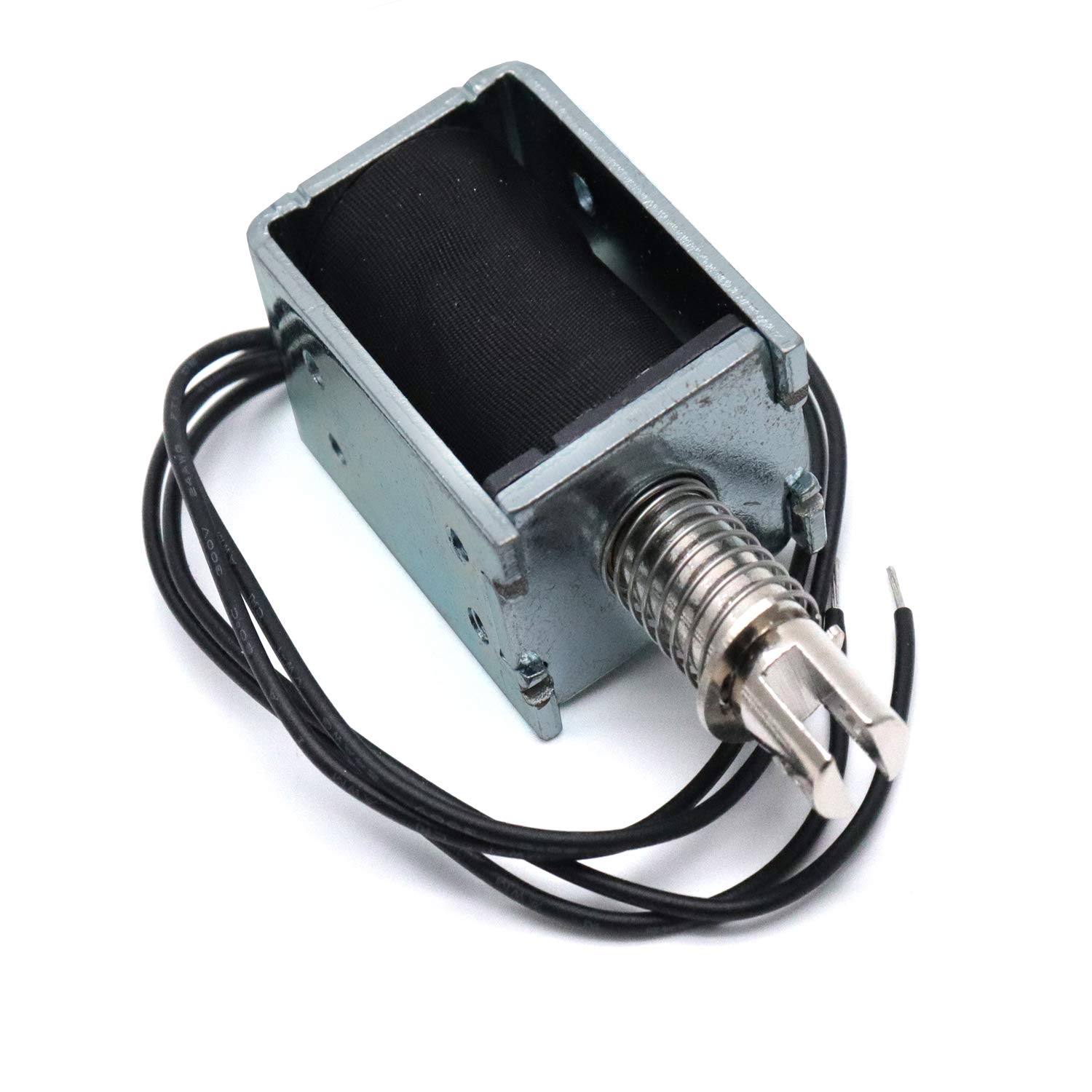

Yootop Pull Type Open Frame Electromagnet Solenoid DC12V 0.92A 10mm Stroke 400g Force Mini Linear Solenoid
