Epoxy and PU Waterproof Only -Not for Silicon Waterproof.

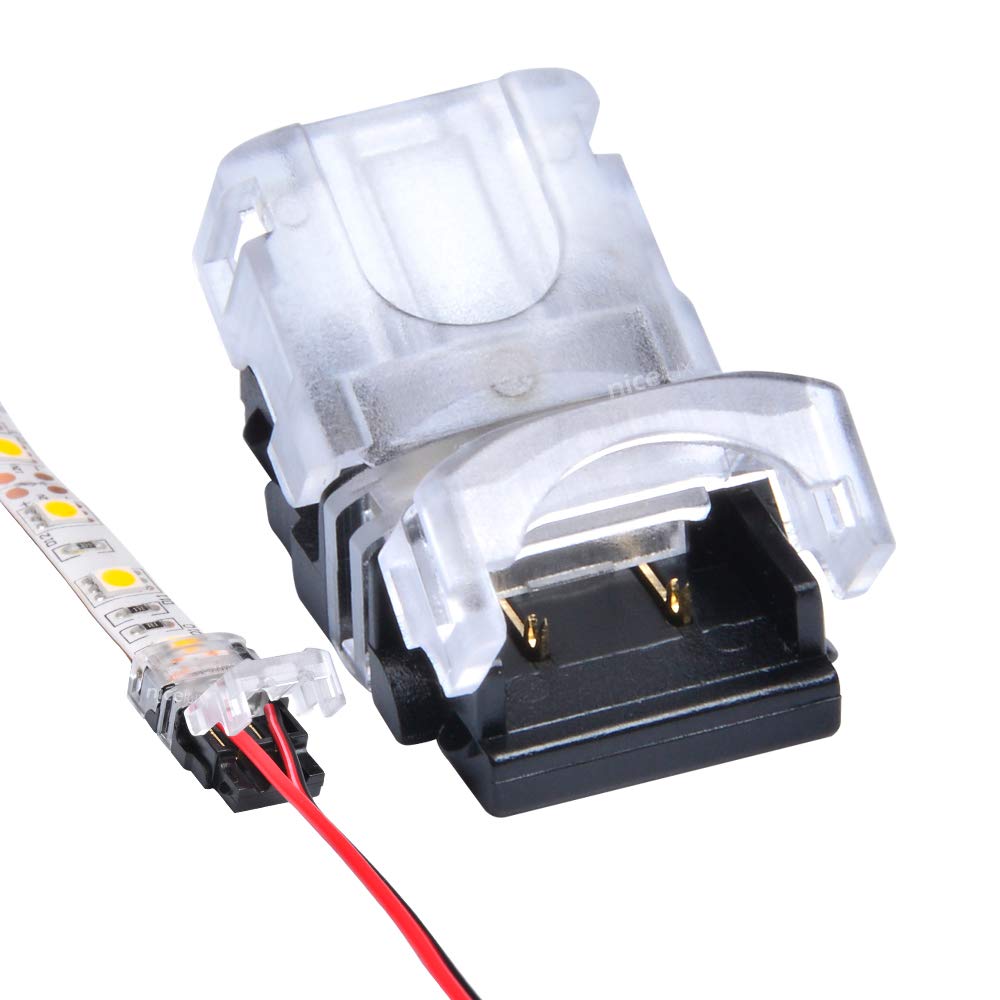

This 2 pin LED strip light connector is a perfect connecting solution for 10mm wide single color waterproof strip light.The free wire desgin allow you to DIY a connector with different cable you want. For example different wire gauge 22~18 AWG / 0.34~0.75 ㎜2,and length can totally be determined by yourself.This will give you really freedom in led strip light wiring. With clear cap that will not mask light of led strip,you can hardly find dark area in the led strip lighting space. Adopting our patent piercing contact connection technology,the connector's pin will pierce pcb to contact circuit of led strip then cap will clamp and fix strip light reliably. We use flame retardant PC to make the housing of the connector that means it is really safe to use. If you're looking for a lead connector to put between strip light and power supply or dimmer, it is the choice.
1)Package Include
10 pcs of 10mm 2 pin Lead Connector Terminal for 5050 Waterproof Single Color LED Strip Light IP65 / IP54
Kindly Note: this package does not include any wire, you can search B01L3DYWCE to purchase the wire that can perfectly work with this connector.
2)Tools Needed
A pliers
3)Technical Data
Working Voltage:Below 24V
Max Current of Pin: 5A
Pin Qunatity: 2 pin
Workable Wire Gaugle: 22~18AWG / 0.34~0.75 ㎜2
Workable Strip Light Width: 10mm （5050, 2835,5630,etc)
Workable PCB Thickness:0.2~0.35 mm
Working Ambient TEMP.: -20~50℃
Heat Resistance:105℃
Connector Dimension: 24.3*14.6*7.7 mm
