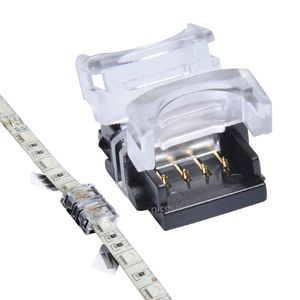

A RGB strip-to-strip middle connector designed to extend your IP65 waterproof light strip longer. Pierce-To-Contact technology allows you directly connect 2 section of strip without removing waterproof covering because the copper pins can pierce through FPC from back and contact circuit inside. This way of connection bring solid fixing to strip light thus making connection very stable and reduce current wave inside strip light. Clear cap can push strip light to pin and allows lights to go through it after connection, so you can hardly see gap in between or shadow dropped to lighting target while working.
1)LED Strip Light Types Supported
- Conventional waterproof 5050 RGB Tape ligth with pu/epoxy coating (NOT for PURE SILICON coating)
- Digital Pixel waterproof strip light like WS2813
- Other flex strip light with 4 soldering pads in 10mm wide FPC with PU/epoxy coating
If need 10 PCS Strip to wire version, go to this link https://www.amazon.com/dp/B01MFC1X5S
2)Package Includes
10 PCS Waterproof RGB LED Connector (Board-to-Board / Strip-to-Strip)
3)Specifications
Working Voltage: 3V, 5V,12V,24V
Max Current of Pin: 5A
Pin Quantity: 4 pin
Workable PCB Thickness: 0.2~0.35 mm
Workable SMD NO. per Meter: below 120 LEDs
Working Ambient TEMP.: -20~50℃
Heat Resistance:105℃
Outer Dimension(closed): 19.55*14.6*7.7mm (L*W*H)
