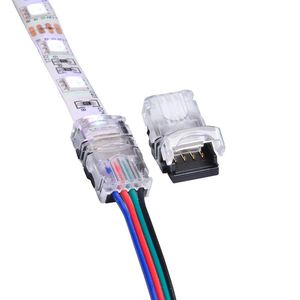

A 4 pin solderless flexible strip light connector designed to link waterproof strip light to 4 conductor extension wire. No need to strip wire insulation nor waterproof coating layer of strip light. You can determine wire gauge and length as you want in linear lighting project with this connector. Powerful,reliable,safe and easy to use.Free you from difficult and dangerous soldering iron operation.
1)LED Strip Type It Can Work With
- Normal RGB LED strip
- Digital chasing LED strip like WS2813,etc
- Other IP65/IP54 LED strip light as long as 10mm with 4 solder pad.
SPECIAL NOTE:This connector NOT for PURE SILICON waterproof coating LED strip light. If you have this kind of strip light,try our IP20 version which is still workable. Visit below link
- 10pcs pack: https://www.amazon.com/dp/B01N9QXW04
- 5pcs pack with wire: https://www.amazon.com/dp/B01N6RVVRB
2)Package Include
LED Strip Connector 4 Pin:50 PCS
Kindly Note: this package does not include any wire, you can search B01L3F4ZHE to purchase the wire that can perfectly work with this connector.
3)Tools Needed
A pliers
A scissor can make works more efficient.(cut wires)
4)Technical Data
Working Voltage:Below 24V
Max Current of Pin: 5A
Pin Quantity: 4 pin
Workable Wire Gauge: 22~20AWG / 0.34~0.52 ㎜2
Workable Strip Light Width: 10mm
Workable PCB Thickness:0.2~0.35 mm
Working Ambient TEMP.: -20~50℃
Heat Resistance:105℃
Connector Dimension: 24.3*14.6*7.7 mm
