Datamax ONEIL OPT78-2738-01 KIT STD CUTTER M-CLASS E

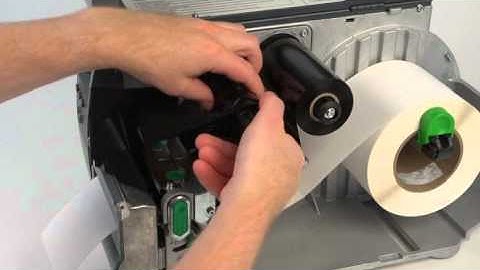

m-class cutter installation the first thing you should do when installing any option is to turn off your printer to avoid burning out the circuit boards press down firmly and remove the front panel loosen the screw and remove the tear plate using a single screw attach the cutter open the printhead and load the media feeding it through the cutter and then load the ribbon you can now turn your printer back on the printer will automatically cycle through one time the screen will let you know when it's ready to print we can now test the printer by printing a test label push the test button and scroll down to the test label push test again choose how many labels you want to print and hit enter
