Description

[Model] G4Q-212S AC200/(220)
[Rated voltage] 200/(220) VAC
[Current (mA)]
50 Hz: 37mA
60 Hz: 32/36.8mA
[Must operate % of rated voltage] 80 % max.
[Must release % of rated voltage] 10 % min
[Max. voltage % of rated voltage] 110 % max.
[Power consumption] Initial:Approx.13.5 VA

Note: 1. The rated current and coil resistance are measured at a coil temperature of 23deg.(C) with tolerances of +15%/-20% for AC rated current and +/-15% for DC coil resistance.
2. The AC coil resistance values are for reference only.
3. Performance characteristic data is measured at a coil temperature of 23deg.(C).
4. The maximum voltage is one that is applicable instantaneously to the Relay coil at an ambient temperature of 23deg.(C) and not continuously.
5. The AC power consumption is measured at 60 Hz.

Contact Ratings
[Contact mechanism] Single
[Contact material] Silver alloy
[Rated load]
5 A at 220 VAC, 5 A at 24 VDC (Resistive load(cos phi = 1))
3 A at 220 VAC, 4 A at 24 VDC (Inductive load(cos phi = 0.4)(L/R = 7 ms))
[Rated carry current] 5 A
[Max. switching voltage] 250 VAC, 250 VDC
[Max. switching current] 5 A
[Weight] cased model: Approx. 340 g

(4)

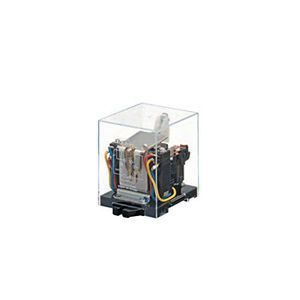

OMRON G4Q-212S AC200/(220) Ratchet Relay (Plug-in Models) NN

Current Price

$66.31

Average

$65.36

Min Price

$60.54

Max Price

$68.23

Price dynamics

1%

Description

[Model] G4Q-212S AC200/(220)
[Rated voltage] 200/(220) VAC
[Current (mA)]
50 Hz: 37mA
60 Hz: 32/36.8mA
[Must operate % of rated voltage] 80 % max.
[Must release % of rated voltage] 10 % min
[Max. voltage % of rated voltage] 110 % max.
[Power consumption] Initial:Approx.13.5 VA

Note: 1. The rated current and coil resistance are measured at a coil temperature of 23deg.(C) with tolerances of +15%/-20% for AC rated current and +/-15% for DC coil resistance.
2. The AC coil resistance values are for reference only.
3. Performance characteristic data is measured at a coil temperature of 23deg.(C).
4. The maximum voltage is one that is applicable instantaneously to the Relay coil at an ambient temperature of 23deg.(C) and not continuously.
5. The AC power consumption is measured at 60 Hz.

Contact Ratings
[Contact mechanism] Single
[Contact material] Silver alloy
[Rated load]
5 A at 220 VAC, 5 A at 24 VDC (Resistive load(cos phi = 1))
3 A at 220 VAC, 4 A at 24 VDC (Inductive load(cos phi = 0.4)(L/R = 7 ms))
[Rated carry current] 5 A
[Max. switching voltage] 250 VAC, 250 VDC
[Max. switching current] 5 A
[Weight] cased model: Approx. 340 g

(4)

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
