Description

Atlas Sound BIA-100 Bi-Axial Horn Loudspeaker
Atlas Sound Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. BIA-100 is designed for use with AtlasIED PD Series compression drivers and models having 13/8" -18 male threads and 0.707" dia. throat openings. The easily-mounted horn features the labor-saving patented gimbal-mount bracket assembly (U.S. Patent 4,325,529) which allows for directional positioning up to 180 degree vertically and horizontally. It includes a steel bracket, cast-mounting base and provisions for flange installation. The weather-resistant, non-glare matte black foam horn is resistant to resonance. Bracket assembly is finished in durable epoxy.

Atlas Sound PD60AT 60W 70V Compression Driver
The Atlas Sound PD60AT is a fully environment-resistant 60 W driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas. Unit features a sound chamber, phasing plug and magnetic-structure components machined to optimum tolerances. Plane wave frequency response is 100 Hz - 3.7 kHz. The PD60AT features a built-in varnish impregnated, multi-tap 70V line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD60AT is terminated in standard 1.38"-18" thread male couplings for use with screw-on horns.

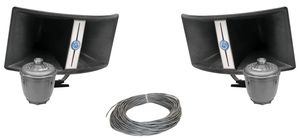

Atlas Sound BIA-100 Bi-Axial Horn Loudspeaker Bundle with PD60AT 60 Watt 70 Volt Compression Driver and West Penn 224 18/2 AWG Speaker Wire - Contractor Pack (2 Horns)

Current Price

$796.99

Average

$796.99

Min Price

$796.99

Max Price

$796.99

Price dynamics

0%

Description

Atlas Sound BIA-100 Bi-Axial Horn Loudspeaker
Atlas Sound Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. BIA-100 is designed for use with AtlasIED PD Series compression drivers and models having 13/8" -18 male threads and 0.707" dia. throat openings. The easily-mounted horn features the labor-saving patented gimbal-mount bracket assembly (U.S. Patent 4,325,529) which allows for directional positioning up to 180 degree vertically and horizontally. It includes a steel bracket, cast-mounting base and provisions for flange installation. The weather-resistant, non-glare matte black foam horn is resistant to resonance. Bracket assembly is finished in durable epoxy.

Atlas Sound PD60AT 60W 70V Compression Driver
The Atlas Sound PD60AT is a fully environment-resistant 60 W driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas. Unit features a sound chamber, phasing plug and magnetic-structure components machined to optimum tolerances. Plane wave frequency response is 100 Hz - 3.7 kHz. The PD60AT features a built-in varnish impregnated, multi-tap 70V line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD60AT is terminated in standard 1.38"-18" thread male couplings for use with screw-on horns.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
