Description

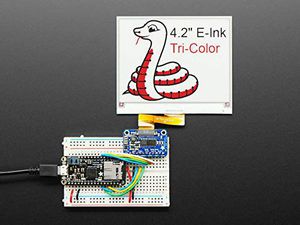

Add some bi-stability to your life with an Adafruit EInk Breakout Friend - your fun pal who's happy to lend a hand when you want to work with EInk/E-Paper displays. Luckily for us, just about every small-medium size EInk display made these days has a standard 24-pin connection. This breakout will add all the power supply support circuitry and level shifting so you can attach your favorite display (up to tri-color 4.2") and wire it up to your favorite development board. Using our CircuitPython or Arduino libraries, you can create a 'frame buffer' with what pixels you want to have activated and then write that out to the display. Most simple breakouts leave it at that. But...just about all EInk displays are write-only and many only let you update the full display (not partial update). That means you have to buffer the full image you want to display, taking up precious RAM. The Eink Friend is much friendlier - it comes with 256 Kilobit (32 Kilobyte) SRAM chip. That means you can control up to a 4.2" 300x400 tri-color display (300*400 * 2 colors / 8 bits-per-byte = 30KB). This chip shares the SPI port the eInk display uses, so you only need one extra pin. And, no more frame-buffering! You can use the SRAM to set up whatever you want to display, then shuffle data from SRAM to eInk when you're ready. The library we wrote does all the work for you, you can just interface with it as if it were an Adafruit_GFX compatible display. If you prefer not to use the chip, our libraries will automatically use the microcontroller/microcomputer internal RAM. For ultra-low power usages, the onboard 3.3V regulator has the Enable pin brought out so you can shut down the power to the SRAM and display. By default the RESE resistor is set to 0.5 ohms, which is the most common value, but by cutting/soldering the bottom solder jumper you can set the resistor to 3 ohms.

Adafruit 4224 eInk Breakout Friend with 32KB SRAM

Get price

Current Price

$13.99

Average

$13.99

Min Price

$13.99

Max Price

$13.99

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

[Music] [Applause] [Music] [Applause] [Music] [Applause] [Music] [Applause] hey hello and welcome to the show it's me jp and it is time for jp's product pick of the week here we are yet again with some cool exciting interesting mysterious product from the adafruit store and the first thing i'll do is let you know you can head right over to the product page in order to get a 50 off discount on that so just point your camera at that or go to this url head on over there it's going to look an awful lot like this right here when you head there and what you're going to see there in red is the temporary 50 off price so if you head to this url right now check it out we're going to talk all about it i'm going to show you a little lady ada video from the past i'm gonna grab one out of my own cabinet of mystery wonders over there and then i'm gonna do a couple of demos for you show you some code w
