Description
Technical Parameters: Operating voltage: DC 5V - 36V; Trigger source: digital high-low (DC3. 3V-20V) (can be connected IO port of microcontroller, PLC interfaces, DC power, etc. . The module can access PWM signal, which can perfectly supported the frequency of 0-20KHZ. ) Output voltage: DC 5V - 36V, Output current: 15A (continuous current, at room temperature. Enhance heat dissipation, the max. current can up to 30A) Output power: 400W Operating temperature: -40-85 ℃ Dimension: 34 × 17 × 12mm. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; can input PWM to control motor speed or lamp brightness. Package Includes: 1× MOS Driving Module

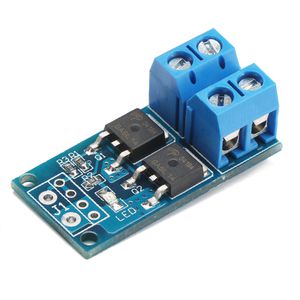

DROK 200203 DC 5-36V 400W Dual Large Power MOS Transistor Driving Module, FET Trigger Switch Board, 0-20KHz PWM Electronic Switch Control, DC Motor Speed Controller
Price is below average
Current Price
$5.87
Average
$8.41
Min Price
$3.5
Max Price
$10.4
Price dynamics
30%
Description
Technical Parameters: Operating voltage: DC 5V - 36V; Trigger source: digital high-low (DC3. 3V-20V) (can be connected IO port of microcontroller, PLC interfaces, DC power, etc. . The module can access PWM signal, which can perfectly supported the frequency of 0-20KHZ. ) Output voltage: DC 5V - 36V, Output current: 15A (continuous current, at room temperature. Enhance heat dissipation, the max. current can up to 30A) Output power: 400W Operating temperature: -40-85 ℃ Dimension: 34 × 17 × 12mm. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; can input PWM to control motor speed or lamp brightness. Package Includes: 1× MOS Driving Module
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
