Description
[Model] E3C-JC4P
[Power supply voltage] 12 to 24 VDC+/-10%, ripple (p-p): 1 V max.
[Power (current) consumption] 40 mA max.
[Control output] Load power supply voltage: 24 VDC max., load current: 100 mA max., NPN open
collector output type (residual voltage: 1 V max.)
Light-ON/Dark-ON switch selectable
[Timer function] OFF-delay 0/40 ms (switch selectable)
[Ambient temperature range] Operating: -10 deg.C to 55 deg.C, Storage: -25 deg.C to 70 deg.C (with no icing or condensation)
[Ambient humidity range] Operating: 35% to 85%, Storage: 35% to 85% (with no condensation)
[Insulation resistance] 20 M Ohm min. at 500 VDC
[Dielectric strength] 1,000 VAC at 50/60 Hz for 1 minute
[Vibration resistance] Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
[Shock resistance] Destruction: 300 ms^2 three times in each of X, Y and Z directions
[Degree of protection] IEC IP40 (limited to indoor use)
[Protection] Reverse polarity protection, output short-circuit protection, mutual interference
prevention
[Response time] Operate or reset: 1 ms max.
[Connection method] Terminal block input cable pullout (standard cable length: 2 m)
[Weight (packed state)] Approx. 80 g
[Material]
Case: ABS
Mounting Brackets: Iron
[Accessories] Mounting Bracket, Adjustment screwdriver, Caution label, Instruction manual
(1)
[Power supply voltage] 12 to 24 VDC+/-10%, ripple (p-p): 1 V max.
[Power (current) consumption] 40 mA max.
[Control output] Load power supply voltage: 24 VDC max., load current: 100 mA max., NPN open
collector output type (residual voltage: 1 V max.)
Light-ON/Dark-ON switch selectable
[Timer function] OFF-delay 0/40 ms (switch selectable)
[Ambient temperature range] Operating: -10 deg.C to 55 deg.C, Storage: -25 deg.C to 70 deg.C (with no icing or condensation)
[Ambient humidity range] Operating: 35% to 85%, Storage: 35% to 85% (with no condensation)
[Insulation resistance] 20 M Ohm min. at 500 VDC
[Dielectric strength] 1,000 VAC at 50/60 Hz for 1 minute
[Vibration resistance] Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
[Shock resistance] Destruction: 300 ms^2 three times in each of X, Y and Z directions
[Degree of protection] IEC IP40 (limited to indoor use)
[Protection] Reverse polarity protection, output short-circuit protection, mutual interference
prevention
[Response time] Operate or reset: 1 ms max.
[Connection method] Terminal block input cable pullout (standard cable length: 2 m)
[Weight (packed state)] Approx. 80 g
[Material]
Case: ABS
Mounting Brackets: Iron
[Accessories] Mounting Bracket, Adjustment screwdriver, Caution label, Instruction manual
(1)

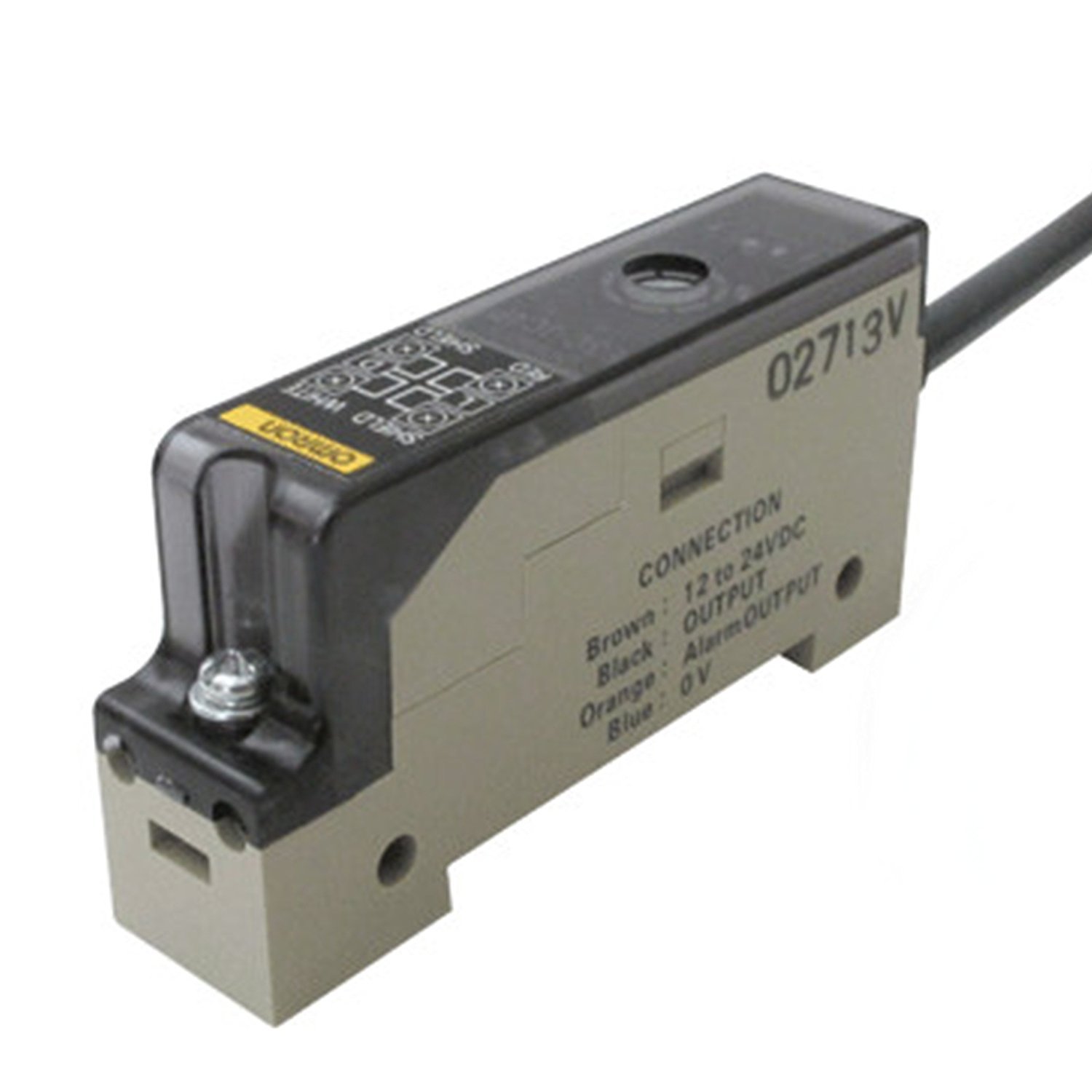

OMRON E3C-JC4P 2M Compact Head Amplifier-separated Photoelectric Sensor Amplifier Units NN
Price is below average
Current Price
$140
Average
$143.27
Min Price
$140
Max Price
$149.89
Price dynamics
2%
Description
[Model] E3C-JC4P
[Power supply voltage] 12 to 24 VDC+/-10%, ripple (p-p): 1 V max.
[Power (current) consumption] 40 mA max.
[Control output] Load power supply voltage: 24 VDC max., load current: 100 mA max., NPN open
collector output type (residual voltage: 1 V max.)
Light-ON/Dark-ON switch selectable
[Timer function] OFF-delay 0/40 ms (switch selectable)
[Ambient temperature range] Operating: -10 deg.C to 55 deg.C, Storage: -25 deg.C to 70 deg.C (with no icing or condensation)
[Ambient humidity range] Operating: 35% to 85%, Storage: 35% to 85% (with no condensation)
[Insulation resistance] 20 M Ohm min. at 500 VDC
[Dielectric strength] 1,000 VAC at 50/60 Hz for 1 minute
[Vibration resistance] Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
[Shock resistance] Destruction: 300 ms^2 three times in each of X, Y and Z directions
[Degree of protection] IEC IP40 (limited to indoor use)
[Protection] Reverse polarity protection, output short-circuit protection, mutual interference
prevention
[Response time] Operate or reset: 1 ms max.
[Connection method] Terminal block input cable pullout (standard cable length: 2 m)
[Weight (packed state)] Approx. 80 g
[Material]
Case: ABS
Mounting Brackets: Iron
[Accessories] Mounting Bracket, Adjustment screwdriver, Caution label, Instruction manual
(1)
[Power supply voltage] 12 to 24 VDC+/-10%, ripple (p-p): 1 V max.
[Power (current) consumption] 40 mA max.
[Control output] Load power supply voltage: 24 VDC max., load current: 100 mA max., NPN open
collector output type (residual voltage: 1 V max.)
Light-ON/Dark-ON switch selectable
[Timer function] OFF-delay 0/40 ms (switch selectable)
[Ambient temperature range] Operating: -10 deg.C to 55 deg.C, Storage: -25 deg.C to 70 deg.C (with no icing or condensation)
[Ambient humidity range] Operating: 35% to 85%, Storage: 35% to 85% (with no condensation)
[Insulation resistance] 20 M Ohm min. at 500 VDC
[Dielectric strength] 1,000 VAC at 50/60 Hz for 1 minute
[Vibration resistance] Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
[Shock resistance] Destruction: 300 ms^2 three times in each of X, Y and Z directions
[Degree of protection] IEC IP40 (limited to indoor use)
[Protection] Reverse polarity protection, output short-circuit protection, mutual interference
prevention
[Response time] Operate or reset: 1 ms max.
[Connection method] Terminal block input cable pullout (standard cable length: 2 m)
[Weight (packed state)] Approx. 80 g
[Material]
Case: ABS
Mounting Brackets: Iron
[Accessories] Mounting Bracket, Adjustment screwdriver, Caution label, Instruction manual
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
