The Arduino Pro Mini in this kit works well with the FTDI Basic Breakout which is why we included one in the starter kit. The voltage regulator on board accepts voltage up to 12VDC. If you're supplying unregulated power to the board be sure to connect to the "RAW" pin and not VCC. The latest and greatest version of this board also breaks out the ADC6 and ADC7 pins as well as adds footprints for optional I2C resistors.
This kit not only includes the Pro Mini and FTDI board, but 40 male headers, six right angle male headers (great for the FTDI connection), two sets of 2-pin female headers for the offset A6/A7 and SDA/SCL pins, a tiny breadboard, jumper wires, and even a couple of LEDs with resistors to get you blinking right away. We also included a six inch, mini-B USB cable for your FTDI board, this cable is short but mighty and works well with this tiny setup, but if you need a longer one check your USB cable drawer or the hookup accessories below.

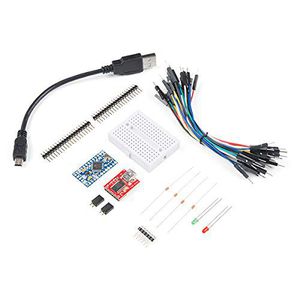

Includes:
Arduino Pro Mini 328 - 5V/16MHz
FTDI Basic Breakout - 5V
USB Mini-B Cable - 6"
Break Away Headers - Straight (40 pins)
Break Away Headers - Right Angle (6 pins)
Female Headers (2 pins) x2
Breadboard - Mini Modular (White)
Jumper Wires Premium 4" M/M (30 pack)
LED - Basic Red 3mm
LED - Basic Green 3mm
Resistor 330 Ohm 1/6th Watt PTH x2
SparkFun (PID 15254) Arduino Pro Mini Starter Kit - 5V/16MHz
The Arduino Pro Mini in this kit works well with the FTDI Basic Breakout which is why we included one in the starter kit. The voltage regulator on board accepts voltage up to 12VDC. If you're supplying unregulated power to the board be sure to connect to the "RAW" pin and not VCC. The latest and greatest version of this board also breaks out the ADC6 and ADC7 pins as well as adds footprints for optional I2C resistors.
This kit not only includes the Pro Mini and FTDI board, but 40 male headers, six right angle male headers (great for the FTDI connection), two sets of 2-pin female headers for the offset A6/A7 and SDA/SCL pins, a tiny breadboard, jumper wires, and even a couple of LEDs with resistors to get you blinking right away. We also included a six inch, mini-B USB cable for your FTDI board, this cable is short but mighty and works well with this tiny setup, but if you need a longer one check your USB cable drawer or the hookup accessories below.
Includes:
Arduino Pro Mini 328 - 5V/16MHz
FTDI Basic Breakout - 5V
USB Mini-B Cable - 6"
Break Away Headers - Straight (40 pins)
Break Away Headers - Right Angle (6 pins)
Female Headers (2 pins) x2
Breadboard - Mini Modular (White)
Jumper Wires Premium 4" M/M (30 pack)
LED - Basic Red 3mm
LED - Basic Green 3mm
Resistor 330 Ohm 1/6th Watt PTH x2
