Description

Working on the principle: 1.An integrated signal conditioning module for ECG and other bio electrical measurement applications. The device is designed to extract, amplify and filter weak biological electrical signals in the case of noise generated by moving or remote electrode placement. The design enables ultra low power analog-to-digital converter (ADC) or embedded microcontroller to easily capture the output signal. 2.AD8232 using bipolar point high pass filter to eliminate motion artifacts and electrode half cell potential. The filter is tightly coupled with the instrument amplifier structure, which can realize the single stage high gain and high pass filter, thus saving the space and the cost. 3.AD8232 uses a non operational amplifier to create a three pole low pass filter, eliminating the additional noise. Users can meet the needs of different types of applications by selecting the cut-off frequency of all filters. In order to improve the system circuit frequency and other undesirable interference of the common mode rejection performance, AD8232 built in an amplifier for the right side driver (RLD) and other drive lead applications. 4.AD8232 contains a fast recovery function, you can reduce the long high pass filter to establish the long tail phenomenon. If the amplifier rail voltage signal mutation (such as the lead out of the case), AD8232 will automatically adjust to a higher filter cutoff state. This feature allows the AD8232 to achieve rapid recovery, and thus the lead connection to the measurement of the object can be achieved as soon as possible after the measurement of the value. Application Fitness and exercise heart rate monitoring Portable ECG Remote health monitoring Game peripherals Bio electrical signal acquisition

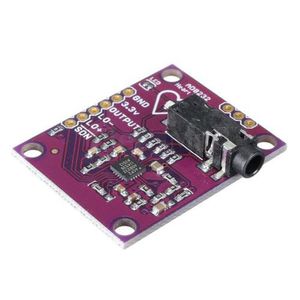

AD8232 Physiological Measurement Heart Pulse ECG Monitor Sensor Module Board

Get price

Current Price

$15.79

Average

$15.79

Min Price

$15.79

Max Price

$15.79

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

[Music] [Music] LX here from how to electronics come and in today's video we'll learn about the electrical activity that is happening in our heart that is the heart contracts and the hot relax and the signal is generated known as ECG signal or electro cardiogram so on the basis of electrocardiogram you can understand what your heart is how the heart is functioning and what other disease that you are facing so we use the module ad 8 - 3 - to measure the heart activity so the graph is something like this now this is the ECG graph now for this we need a semicircle ad 8 - 3 - we have bout this sensor from Amazon so I'm tearing it you will get an electrode as well as the connecting rod of 3.5 mm so this is how the ad 8 - 3 - sensor looks like we have total number of 9 pins out of them will be only using the four or five pins so you can see ground 3.3 volt output hello - hello plus and STM SD
