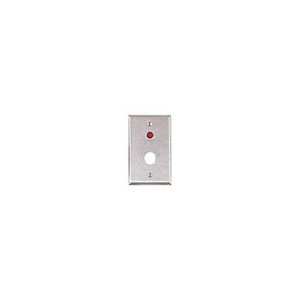

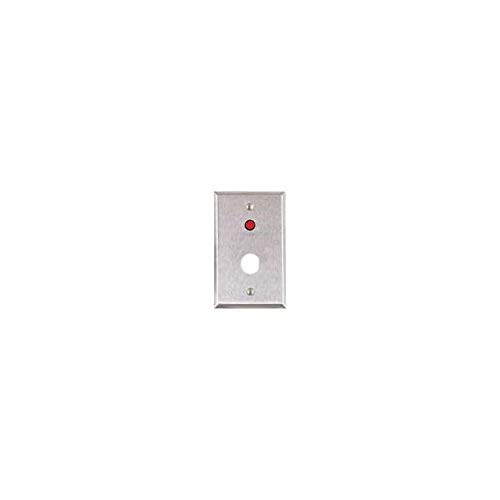

ALARM CONTROLS RP7 ACC RP-7 1-RED LED D HOLE by Alarm Controls

[Music] hi in this video i'm going to demonstrate how to use the programmable output on your keypad if you have a look at the back of your keypad you will see there is a terminal there that says pgm now you may be familiar with these terminals if i show you the main board of the alarm here on the main board you will see there are several programmable outputs and then if you look at the expander boards the standalone expander boards also have two programmable outputs right so this keypad has a dedicated programmable output here and i'm going to demonstrate how to use this now the purpose of this programmable output is really for an led so here i have two leds i've got what is called a high bright and here's a red led and some people might want to use a green led depending on what you want that programmable output to do so in this case i'm going to use one of these leds now why i'm showin
