Description

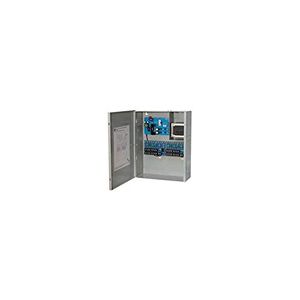

ALTV1224DC1CB CCTV Power Supply, 16 PTC Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure ALTV1224DC1CB is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) PTC protected outputs with a total of 4A total supply current. Input Input 115VAC, 50/60 Hz, 1.45A. Output Sixteen (16) PTC protected outputs (auto-resettable). 12VDC or 24VDC. 4A total continuous supply current (0.25A per device, 3.5A max.). Outputs are rated @ 3.5A. Filtered and electronically regulated outputs. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 25 BTU/Hr. 24VDC: 49 BTU/Hr. System AC input VA requirement: 166.75VA. Features AC input and DC output LED indicators. Power ON/OFF switch. Unit maintains camera synchronization. Ease of installation saves time and eliminates costly lab
Altronix ALTV1224DC1CB
Price is below average
Current Price
$168.06
Average
$175.69
Min Price
$164.01
Max Price
$220.01
Price dynamics
4%
Description
ALTV1224DC1CB CCTV Power Supply, 16 PTC Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure ALTV1224DC1CB is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) PTC protected outputs with a total of 4A total supply current. Input Input 115VAC, 50/60 Hz, 1.45A. Output Sixteen (16) PTC protected outputs (auto-resettable). 12VDC or 24VDC. 4A total continuous supply current (0.25A per device, 3.5A max.). Outputs are rated @ 3.5A. Filtered and electronically regulated outputs. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 25 BTU/Hr. 24VDC: 49 BTU/Hr. System AC input VA requirement: 166.75VA. Features AC input and DC output LED indicators. Power ON/OFF switch. Unit maintains camera synchronization. Ease of installation saves time and eliminates costly lab
