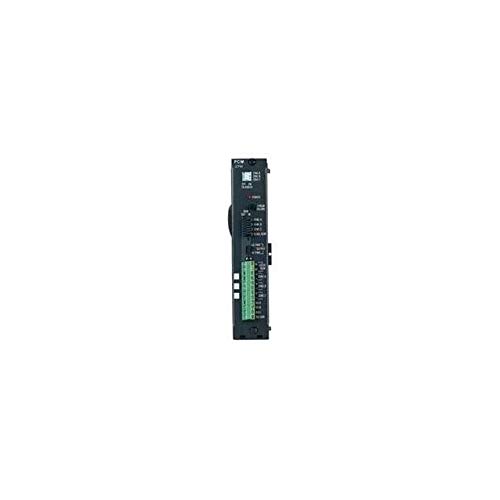

Bogen PCMZPM 3-Zone Paging Module for PCM2000

[Music] hey everybody I'm Ben and today I thought I'd go through and explain how we have Cisco to port 80 a hooked up to a bogan amplifier and a bogan WM WM t - 1a and we'll quickly go through the the output of the Cata has two ports and we basically have that run into the tip and ring of the station trunk I just peel back those wires there the page out goes to PT and P are apt and PR and that goes into the WMT - 1a this basically increases that voltage and then from here it goes the input of this bogan TPU 60v amplifier so it's a pretty easy setup we actually have the the the Cisco's they come normally configured into the loop start instead of ground start and then you basically can adjust these settings however you want the settings to be done and we have the tone up pretty pretty loud so that way if somebody's actually wanting to you know they definitely know that they're paging they
