Description

This digital multimeter is designed and manufactured in accordance with IEC-61010 safety requirements on electronic measuring meters and hand-held digital multimeters.
It is compliant with the requirements on 600V CAT IV 1000V CAT. III and pollution degree 2 as contained in IEC61010.
This meter is a hand-held digital multimeter with RMS. It is equipped with a large screen LCD with backlight that facilitates users in recognizing readings. Moreover, it provides overload protection and Low Battery indications. Anyhow, it is an ideal multi-functional meter suitable for professionals, factories, schools, enthusiasts, or homes.

Features:
Maximum display: 6000 counts
True RMS
AC voltage wideband:1KHz
AC and DC voltage, Current, Resistance, Capacitance, Frequency measurement
Diode Test
Beep on/off test
Transistor measurement
NCV test (non-contact voltage detection)
Live line measurement
Reading hold
Low voltage indication
Auto power off
Backlight

Specification:
DC voltage: 600mv/6v/60v/600v/1000v ±0.5%+3
AC voltage: 6v/60v/600v/750v ±0.8%+3
DC Current: 60uA/60mA/600mA ±0.8%+3, 20A ±1.2%+3
AC Current: 60mA/600mA ±1.0%+3, 20A ±1.5%+3
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ±0.8%+3, 60MΩ ±1.2%+3
Capacitance: 6nf/60nf/600nf/6uf/60uf/600uf/6mF ±4.0%+3, 60mF ±5.0%+3
Frequency: 9.999Hz~9.999MHz ±1.0%+3
Duty ratio: 5%-95% ±2.0%+3
Transistor(Hfe): 0-1000 ±1.0%+3
Power Supply: 3*1.5V AAA Battery
Weight: 380g
Size: 190mm*89mm*50mm

Package:
1 x Bside ADM08A Multimeter
1 x Test leads
1 x English user Manual

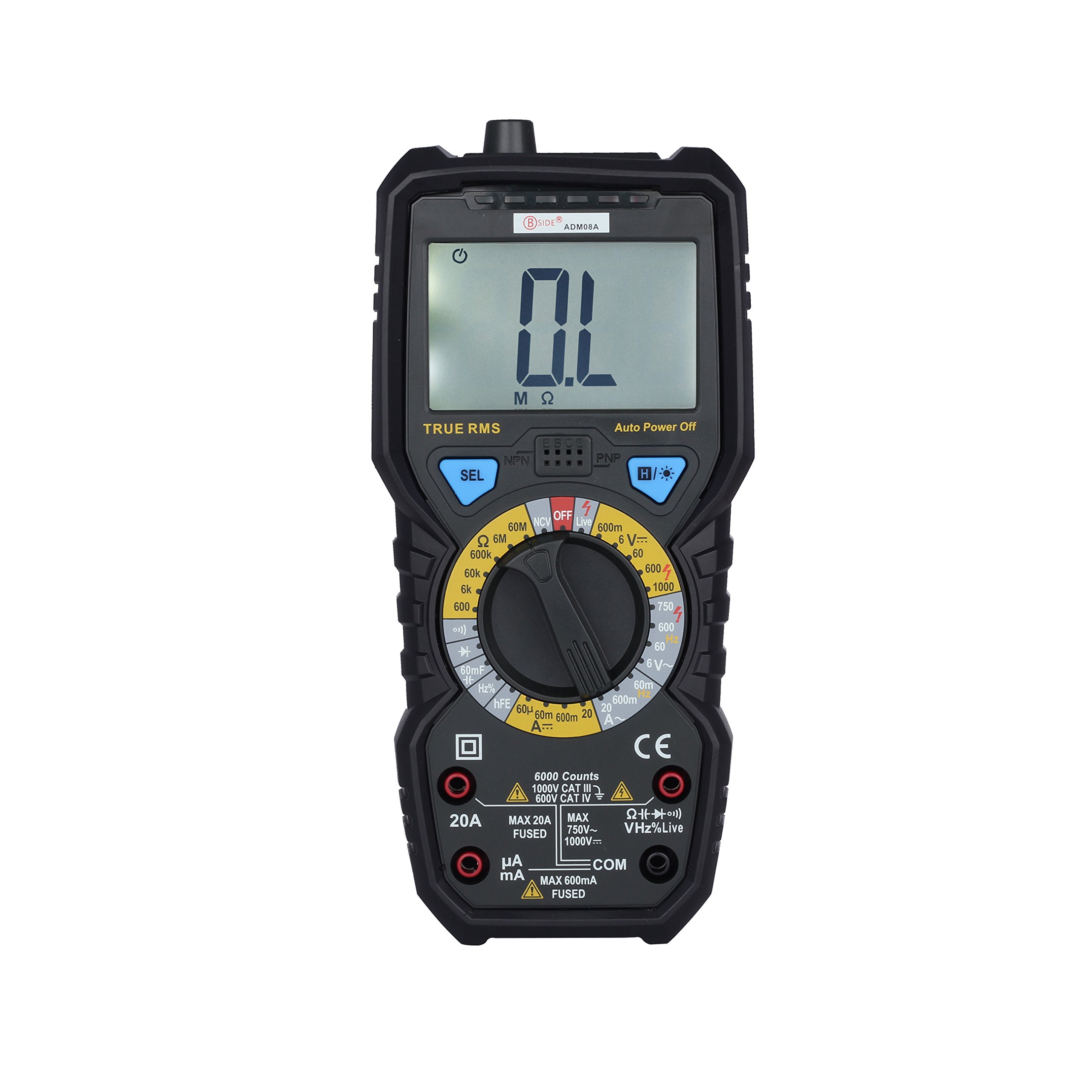

Bside ADM08A 6000 True RMS Digital Multimeter C R F tester NCV backlight diode beep

Price is below average

Current Price

$19.99

Average

$24.49

Min Price

$19.99

Max Price

$28.99

Price dynamics

18%
