Description

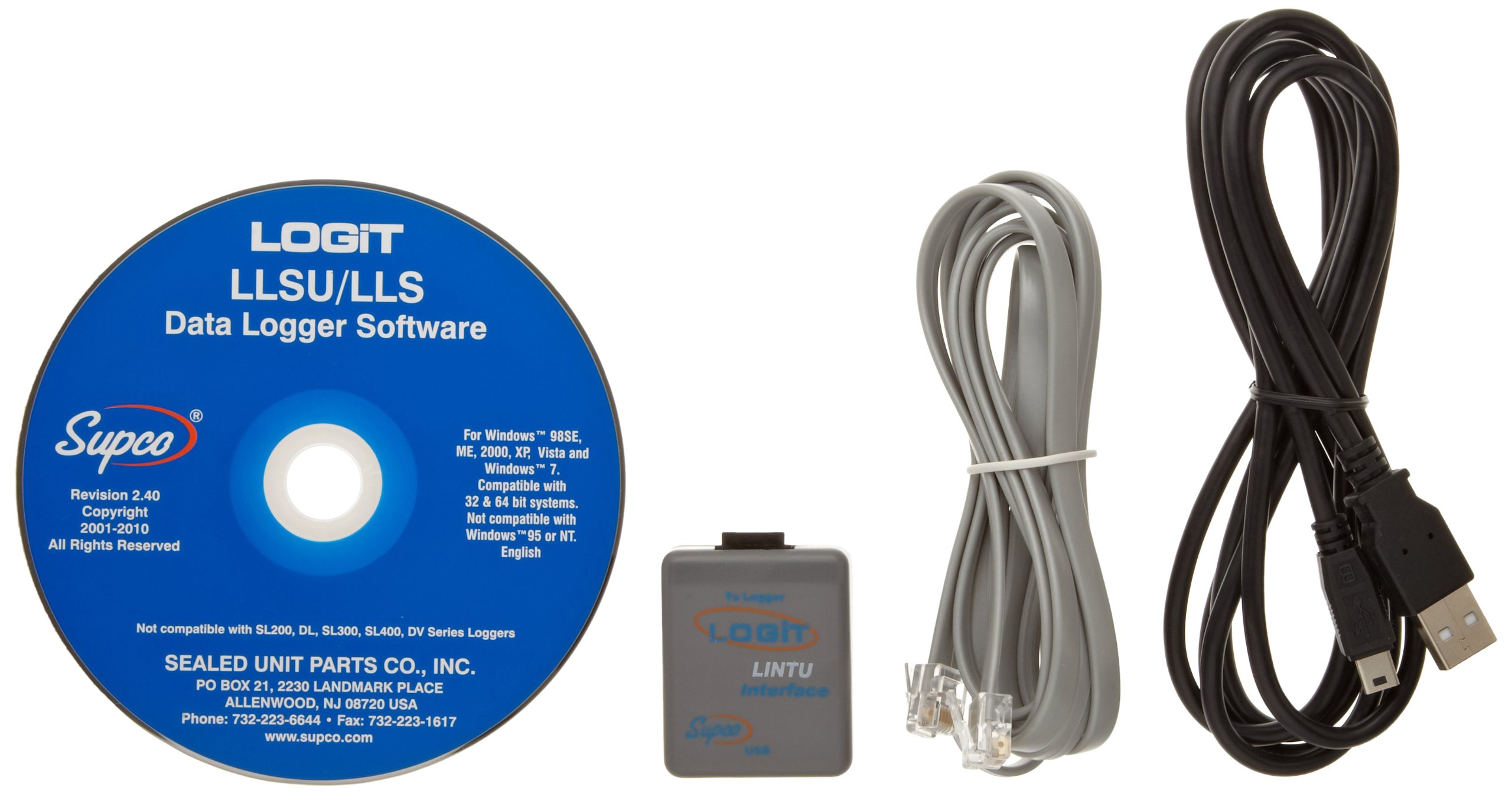

Supco LLSU LOGiT USB Logger Interface Software

Specifications

Sampling Interval

User selectable from 1 second to 18 hours, in 1 second increments.

Interface

LLS Kit: COM (RS232) serial port. LSSU Kit: USB Port (Not compatible with
Windows 95 or Widnows NT).

Alarms

Visual alarms with user selectable low and high thresholds for every
channel.

Alarm Memory

Up to 50 alarm events. Alarm start time and alarm duration is stored.

Data Security

Locking sliding door prevents physical access to the logger data. Unique
factory set logger id. Data collection session counter.

Compatibility

Windows 95 and above. LLSU USB Kit is not compatible with Windows 95 or
Windows NT.

Minimum System Requirements

8MB of RAM, 2M of disk space, 800 x 600 resolution, 1 free COM port or a
free USB port.

Recording Start

On door close, immediate after setup, or at a user specified date and time.

Recording Mode

Stop on memory full, or continuous recording with memory rollover.

Real Time Status

Visual indication through the status LED. User selectable status display
frequency and LED brightness. Software real time status.

User Calibration

Password protected calibration for each channel.

User Message

Up to 30 characters.

Logger Channels

User selectable. Disabling channels increases the storage capacity of the
other channels

Units

US and Metric. User selectable units.

Data Format

Custom format exportable to text or Excel spreadsheet.

Real Time Monitoring

Logger can be permanently connected to the computer and used as a real
time, multichannel sensor with logging

Supco LLSU LOGiT Software and USB interface

Current Price

$74.88

Average

$68.1

Min Price

$49.8

Max Price

$74.97

Price dynamics

9%

Description

Supco LLSU LOGiT USB Logger Interface Software

Specifications

Sampling Interval

User selectable from 1 second to 18 hours, in 1 second increments.

Interface

LLS Kit: COM (RS232) serial port. LSSU Kit: USB Port (Not compatible with
Windows 95 or Widnows NT).

Alarms

Visual alarms with user selectable low and high thresholds for every
channel.

Alarm Memory

Up to 50 alarm events. Alarm start time and alarm duration is stored.

Data Security

Locking sliding door prevents physical access to the logger data. Unique
factory set logger id. Data collection session counter.

Compatibility

Windows 95 and above. LLSU USB Kit is not compatible with Windows 95 or
Windows NT.

Minimum System Requirements

8MB of RAM, 2M of disk space, 800 x 600 resolution, 1 free COM port or a
free USB port.

Recording Start

On door close, immediate after setup, or at a user specified date and time.

Recording Mode

Stop on memory full, or continuous recording with memory rollover.

Real Time Status

Visual indication through the status LED. User selectable status display
frequency and LED brightness. Software real time status.

User Calibration

Password protected calibration for each channel.

User Message

Up to 30 characters.

Logger Channels

User selectable. Disabling channels increases the storage capacity of the
other channels

Units

US and Metric. User selectable units.

Data Format

Custom format exportable to text or Excel spreadsheet.

Real Time Monitoring

Logger can be permanently connected to the computer and used as a real
time, multichannel sensor with logging

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
