Features

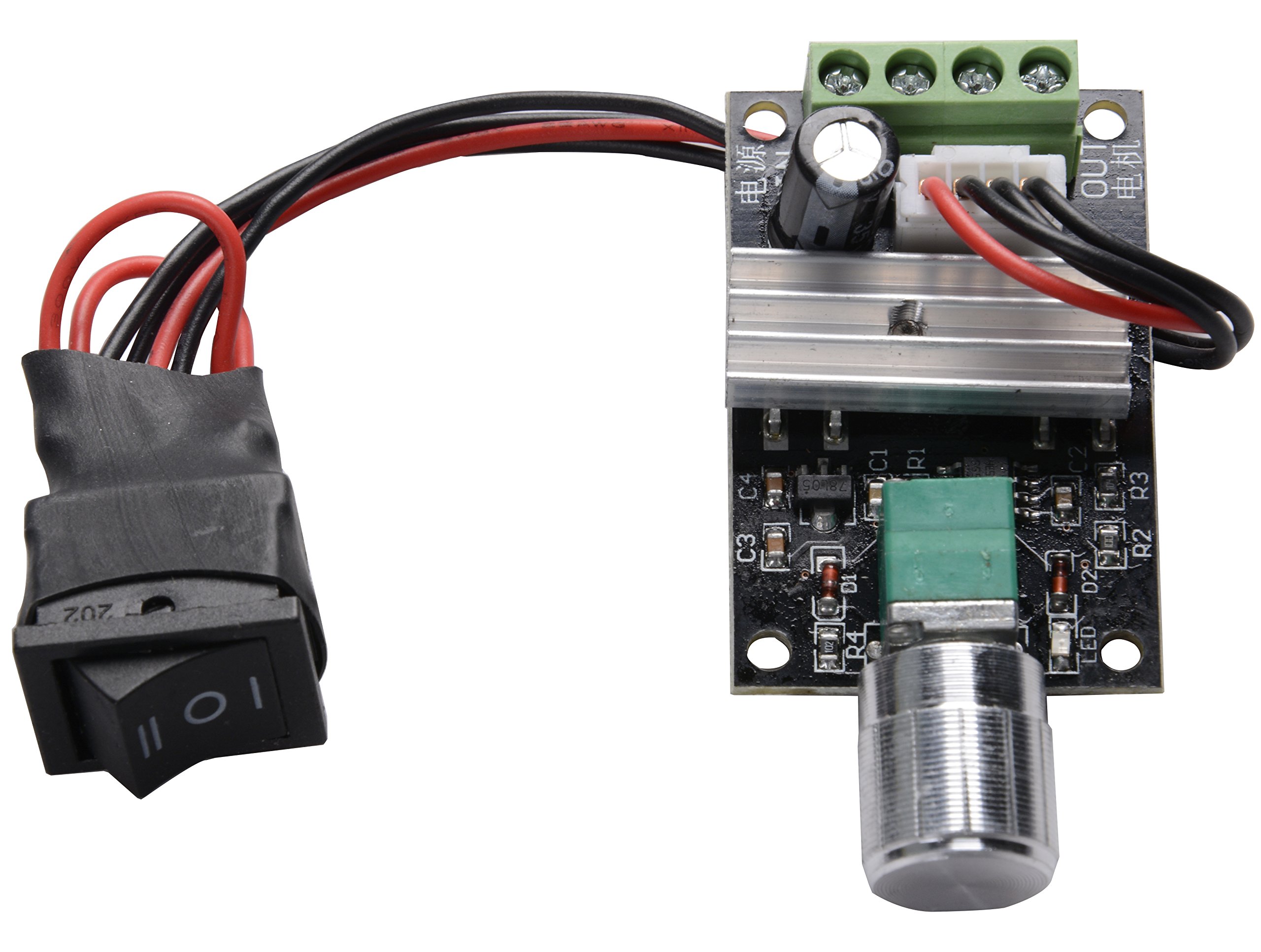

1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM)
The input power range is DC6-28V .
Duty Cycle adjustable range is 5%-100%
Control the forward or reverse direction and the stop of DC motor by switch.
Potentiometer with switch function.
The switch cable length 15cm.
The maximum continuous output current :3A
The maximum output power: 80W
Operating instruction
Before you attempting to wire the controller, make sure power is off.
>Warning
1. Connect wires refer to the "wiring diagram"
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor
DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
Package including:
1 x DC Motor Speed Controller
About 1203bb:
Main Usage: widely use to people DIY, hobby, scientic test, such as control computer Ipad fan speed, control bulb, control motor kymco, control xbox360, HHO Pluse Width modulator, Test Equipment, industrial automation, speed regulator module board support PLC, motor electric pump fan speed control, PWM HHO RC controller,remote control toys, etc
