Size:Motor Driver

Download the English manual:

Description:

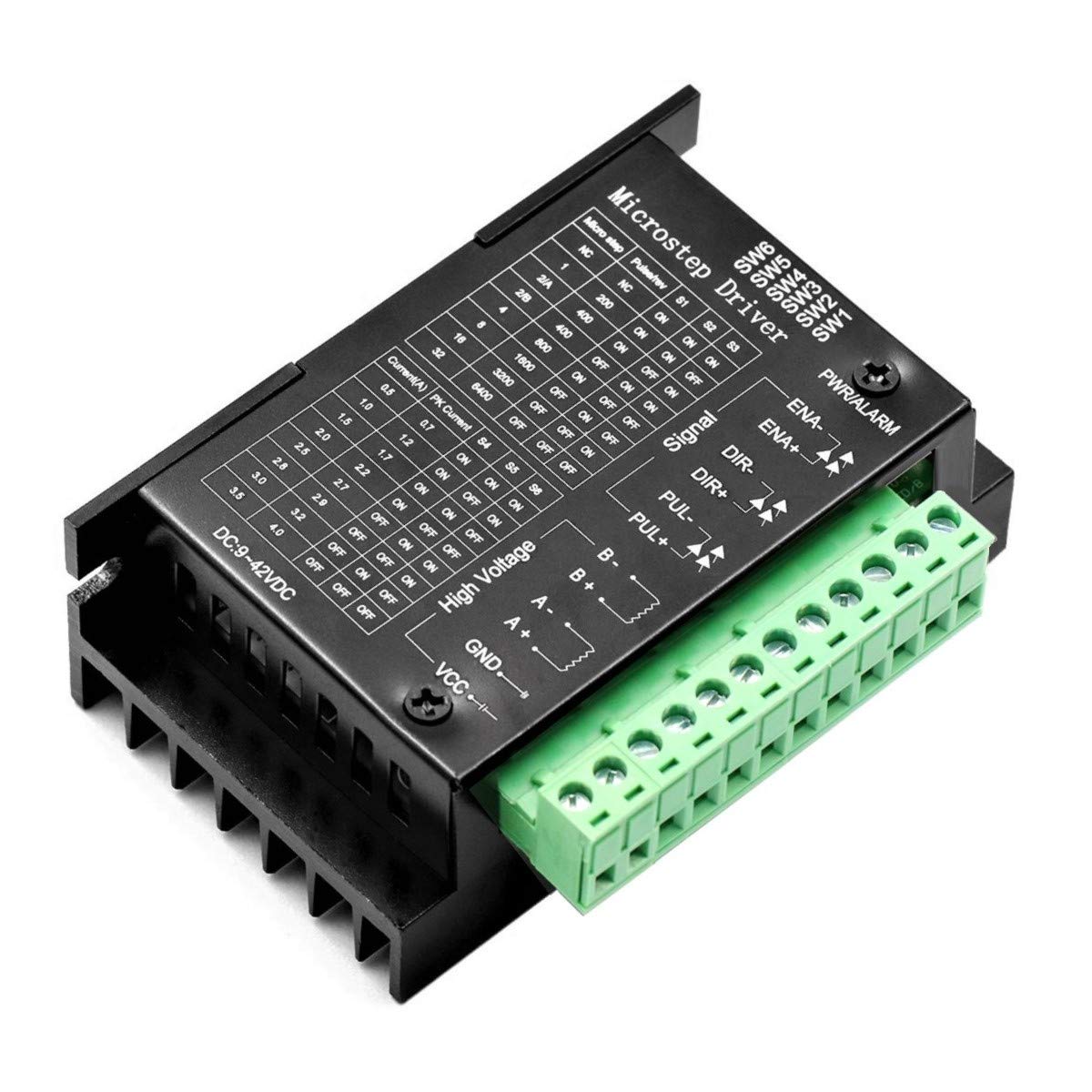

PWM chopper type bipolar stepper motor driver IC

1. 9V-42V DC power supply

2. H bridge bipolar constant phase flow drive

3. the maximum 4.0A of the eight kinds of output current

4. the largest 32 subdivision of the 6 models are optional

5. input signal high speed photoelectric isolation

6. common-anodestandard single pulse interface

7. offline to maintain the function

8. semi closed enclosure can be adapted to a more stringent environment

9. to provide energy-saving semi-automatic current lock function

10. built-in temperature protection and over current protection.

11.weight: 201g

Package Included: 1pcs Motor Driver
