Description
Feature:

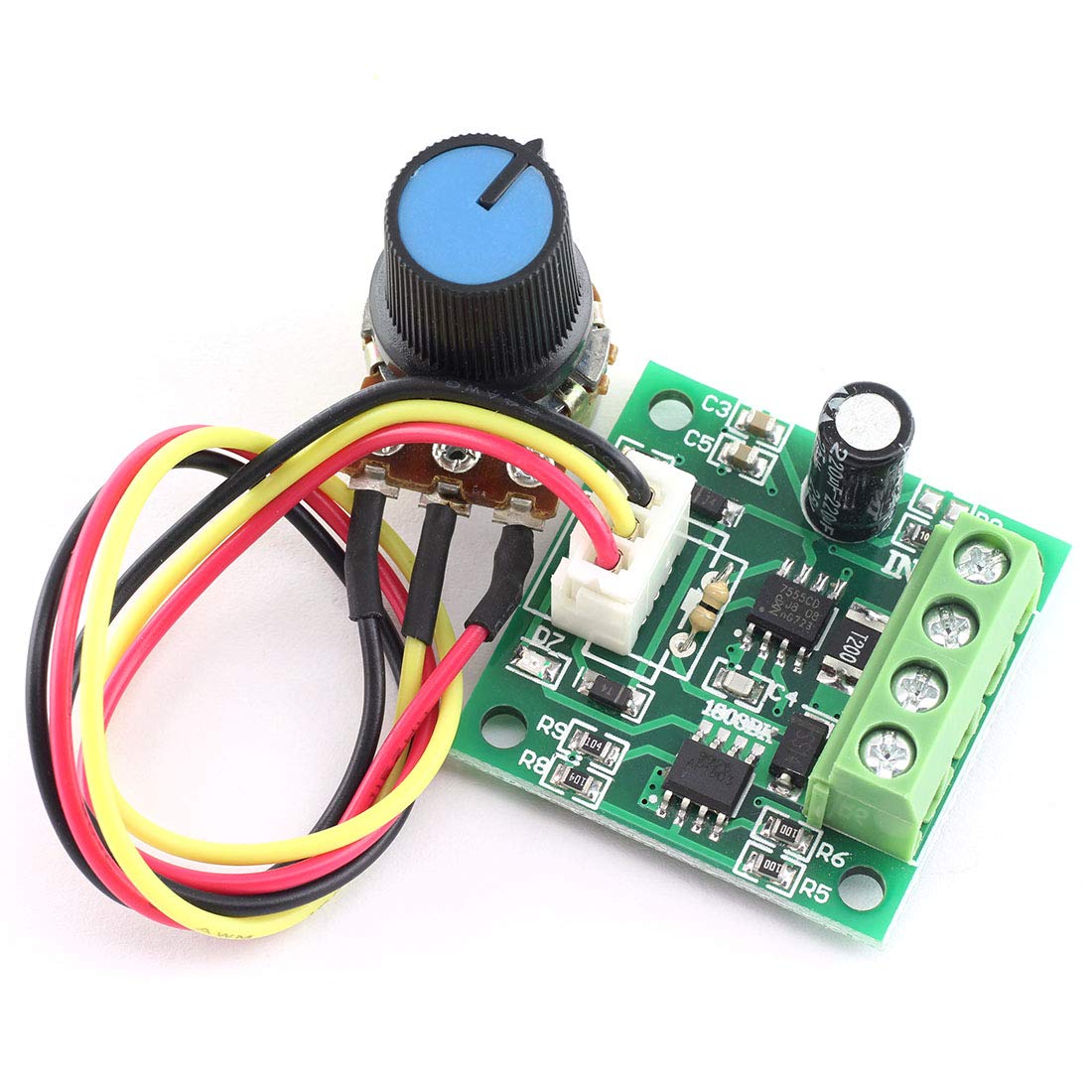

Product Name: DC 1.8-15V 2A Mini PWM Motor Speed Controller
Input Voltage: DC 1.8V-15V
Output Current: 0-2A
Output Voltage: Linear under load
Sustained Current: 2A
Speed Range: 0-100%
Speed Control Type: Current adjust
Speed Regulation Type: Potentiometer (linear)
Connection Type: Barrier terminal block
Safety Protection: Onboard 2A self-recovery fuse
Module Size: 32x32x15mm
Installation Size: 26x26mm
Potentiometer Mounting Hole: 7mm
Note:
1. Not applicable to AC voltage;
2. Do not support reversed polarity, do not reverse positive and negative poles;
3. The controller is not suitable for brushless DC fan. It can't control the speed of the wire-drawing fan effectively.
4. Do not exceed module load. The voltage is DC 1.8V-15V, and the current should not exceed 2A, otherwise the module will be burn out.
5. If you need to detect output voltage changes, connect the load. Otherwise, the output voltage change cannot be detected.
Package List:
1pcs DC 1.8-15V 2A Mini PWM Motor Speed Controller
