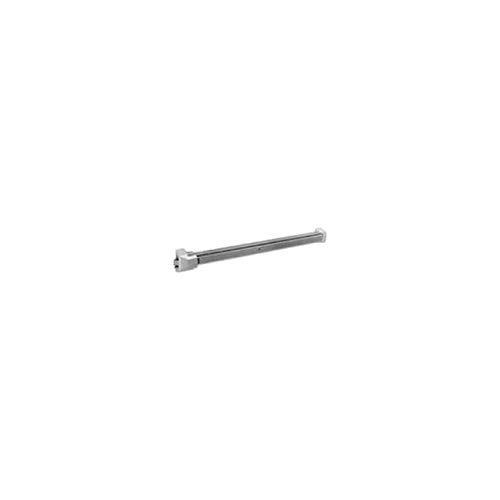

Corbin Russwin ED8200-691 36'' Rim Exit Device in Light Bronze Finish

draw a vertical center line for the active case based on the types of installation found in the written instructions measure thirty seven and five eighths inches above the finished floor and draw a horizontal line align the active case template with the center lines and tape using the cross bar hole centres for measuring draw a vertical center line for the inactive case measure 38 and five-eighths inches above the finished floor and draw a horizontal line align this template with the center lines and tape pin punch mounting holes for the active and inactive cases then drill and tap the holes in the door per the template press in the latch bolt and remove the cover from the active case chassis mount the chassis to the door with number 10 mounting screws remove the cover from the inactive case and mount to the door to attach the outside trim slide the through bolts screws through the insi
