Main Processor:Embedded processor
Operating System:Embedded LINUX
Input:32 channel, BNC
Standard:NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Input:4 channel, BNC
Output:1 channel, BNC
Two-way Talk:1 channel Input,1 channel Output, BNC
Interface:2 HDMI, 1 VGA, 1 TV
Resolution:1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split:1/4/8/9/16/25/36
Privacy Masking:4 rectangular zones (each camera)
OSD:Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video/Audio Compression:H.264/G.711
Resolution:720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) /CIF(352×288/352×240)/QCIF(176×144/176×120)
Bit Rate:48~8192Kb/s
Record Mode:Manual, chedule(Regular(Continuous), MD), Stop
Record Interval:1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Trigger Events:Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection:Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input:16 channel
Alarm Output:6 channel
Sync Playback:1/4/8/16
Search Mode:Time/Date, MD & Exact search (accurate to second)
Playback Functions:Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode:USB Device/eSATA Device/Internal SATA burner/Network
Ethernet:RJ-45 port (10/100M/1000M)
Max. User Access:128 users
Weight:6KG(without HDD)

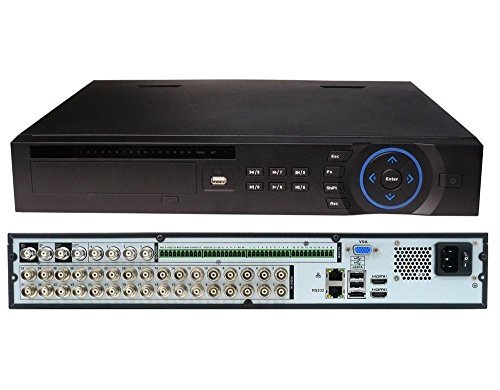

Dahua 32-Channel 960fps at 720P Real-Time HD-CVI H.264 Standalone DVR: 1.5U, VGA/HDMI/BNC, 4ch Audio, Alarm, eSATA, 2yr
Main Processor:Embedded processor
Operating System:Embedded LINUX
Input:32 channel, BNC
Standard:NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Input:4 channel, BNC
Output:1 channel, BNC
Two-way Talk:1 channel Input,1 channel Output, BNC
Interface:2 HDMI, 1 VGA, 1 TV
Resolution:1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split:1/4/8/9/16/25/36
Privacy Masking:4 rectangular zones (each camera)
OSD:Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video/Audio Compression:H.264/G.711
Resolution:720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) /CIF(352×288/352×240)/QCIF(176×144/176×120)
Bit Rate:48~8192Kb/s
Record Mode:Manual, chedule(Regular(Continuous), MD), Stop
Record Interval:1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Trigger Events:Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection:Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input:16 channel
Alarm Output:6 channel
Sync Playback:1/4/8/16
Search Mode:Time/Date, MD & Exact search (accurate to second)
Playback Functions:Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode:USB Device/eSATA Device/Internal SATA burner/Network
Ethernet:RJ-45 port (10/100M/1000M)
Max. User Access:128 users
Weight:6KG(without HDD)
