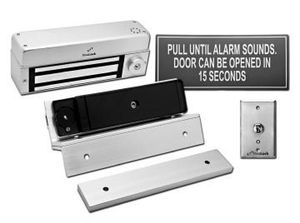

DynaLock 3101C-TJ101-US28

[Music] perfect example of sensor adjustment as the delayed ears not initiating first thing you wanna do is take the cover off and flip dip switch one on the circuit board into the up position now open the door remove the disk top and screw from the armature plate I spin the wheel clockwise to increase the sensitivity and counter clockwise to decrease it shut your door I'm testing adjustments by pushing on it the noticing of the LED makes the state change once at put your desktop back in place the screw the door work correctly when the daily Gress countdown begins and the door will open [Music] a common issue that comes up if the lock goes directly into the leading elements the access control has been in this is usually because terminal 7mate are being used to open the door [Music] simply swap the terminals 2 9 and 10 and utilise the onboard time delay feature by turning the potentiomet
