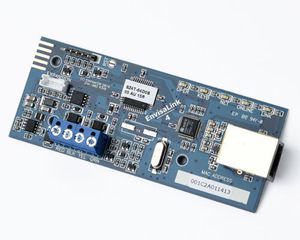

EyezOn Envisalink EVL-4 IP Interface Module

[Music] to install the invisilink 4 into your security panel place the plugs provided in the side of your security panel as shown next you loosen the connection screws of the invisalign 4 module labeled red black yellow and green then insert the corresponding colored wires into these ports and tighten the screws to secure the wires once the wires are secure you can fasten the invisalign 4 module inside of your security panel as shown now take the red black yellow and green wires coming from the invisalign 4 module and connect them to the key bus terminals on your security system labeled red black yellow and green then tighten the connections now that your invisilink 4 module is connected just take your rj45 network cable and plug it in from your network connection to the invisalign 4 module restore the power to your security system and this is what your invisilink 4 should look like whe
