Description

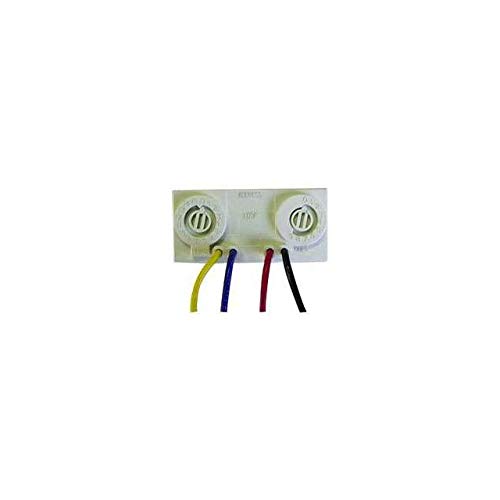

Firelite MMF-301 Mini-monitor Module, Built-in Type Identification Automatically Identifies This Device as a Monitor Module to The Panel, Powered Directly by Two-wire SLC Loop

The MMF-301 monitor module can be installed in a single gang junction box directly behind the monitored unit. Its small size and light weight allow it to be installed without rigid mounting. The MMF-301 is intended for use in intelligent, two-wire systems where the individual address of each module is selected using rotary switches. It provides a two-wire initiating circuit for normally open contact fire alarm and security devices. This module can be used to replace an M301 module in existing systems.

Key Features

Built-in type identification automatically identifies this device as a monitor module to the panel
Powered directly by two-wire SLC loop. No additional power required
High noise (EMF/RFI) immunity
SEMS screws with clamping plates for ease of wiring
Direct-dial entry of address: 01 159 on MS-9600 series panels, 01 99 on other compatible systems
LED flashes during normal operation and latches on steady to indicate alarm

Specifications

Nominal Operating Voltage: 15-32 VDC
Average Operating Current: 375 μA (group poll); 350 μA (direct poll); 600 μA Maximum (Communicating, IDC Shorted)
EOL resistance: 47K ohms
Maximum IDC Resistance: 1,500 Ohms
Maximum IDC Voltage: 11 Volts
Maximum IDC Current: 450 μA
Temperature Range: 32˚F to 120˚ F (0°C to 49°C)
Humidity: 10% to 93% Non-condensing
Dimensions: 1.3"H x 2.75"W x 0.65"D
Wire length: 6" minimum

Firelite MMF-301 Mini-monitor Module, Built-in Type Identification Automatically Identifies This Device as a Monitor Module to The Panel, Powered Directly by Two-wire SLC Loop

Price is below average

Get price

Current Price

$55.63

Average

$66.11

Min Price

$45

Max Price

$108.81

Price dynamics

16%

Description

Firelite MMF-301 Mini-monitor Module, Built-in Type Identification Automatically Identifies This Device as a Monitor Module to The Panel, Powered Directly by Two-wire SLC Loop

Key Features

Built-in type identification automatically identifies this device as a monitor module to the panel
Powered directly by two-wire SLC loop. No additional power required
High noise (EMF/RFI) immunity
SEMS screws with clamping plates for ease of wiring
Direct-dial entry of address: 01 159 on MS-9600 series panels, 01 99 on other compatible systems
LED flashes during normal operation and latches on steady to indicate alarm

Specifications

Nominal Operating Voltage: 15-32 VDC
Average Operating Current: 375 μA (group poll); 350 μA (direct poll); 600 μA Maximum (Communicating, IDC Shorted)
EOL resistance: 47K ohms
Maximum IDC Resistance: 1,500 Ohms
Maximum IDC Voltage: 11 Volts
Maximum IDC Current: 450 μA
Temperature Range: 32˚F to 120˚ F (0°C to 49°C)
Humidity: 10% to 93% Non-condensing
Dimensions: 1.3"H x 2.75"W x 0.65"D
Wire length: 6" minimum

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

welcome back in the last video I introduced a basic monitor module and I started to make a point that I never finished so I want to do that now real quick I'm going to hook up this addressable panel to the same monitor module that we looked at in the last video in FM m1 again that's a notifier part and I made a comment that you can't hook a 24 volt smoke detector up to the conventional side of one of these modules you can only hook a normally open contact closure device and the reason is if you look at what's connected to this module the only the only source of power is the data circuit on a notifier panel the data circuit is about 14 to 15 volts DC and it's powering it can be powering over 300 devices depending on the panel there's just not enough power available to put it's just not the right type of power it's it's a data circuit there's no way to power up a twenty Moke detector that
