Description
These ports connect the receiver to various models, component's andflight controllers.
PPMsignal port: Outputs standard PPM signal. i-BUS signal port: Outputs i-BUS signal.
VCC: Power supply voltage from 4.0 - 8.4V.
GND: Connect to ground wire.
Product specifications:
Channels: 8
Model Type: Multi Rotor
PPM/i-BUS
Frequency Range: 2.408-2.475GHz
Bandwidth: 500KHz
Number of Bands: 135
Transmission Power: <20dBm(EU)
Receiver Sensitivity: - 92dBm
2.4GHz Protocol: AFHDS 2A
Modulation: GFSK
Transmission Method: FHSS
Channel Latency: <15ms
Antenna lenghth: 93mm (Double Antenna)
Input Power: 4.0-8.4V
Display: LED Indicator
Online Update: None
Range without interference 1m from the ground:more than 300m
Channel Data: 1500us
Range : 1000 ~ 2000us
Dimensions: 32*22.5*7.5mm
Weight: 3.7g
Certificate: CE , FCC
Binding:
1.First put the transmitter into bind mode (see the transmitter's user manual for instructions on how to activate bind mode.)
2.Connect the receiver to power, the receiver's LED will start to flash indicating that it has entered bind mode.
3.When the receiver's LED stops flashing the transmitter and receiver have successfully bound.
4.Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.
PPMsignal port: Outputs standard PPM signal. i-BUS signal port: Outputs i-BUS signal.
VCC: Power supply voltage from 4.0 - 8.4V.
GND: Connect to ground wire.
Product specifications:
Channels: 8
Model Type: Multi Rotor
PPM/i-BUS
Frequency Range: 2.408-2.475GHz
Bandwidth: 500KHz
Number of Bands: 135
Transmission Power: <20dBm(EU)
Receiver Sensitivity: - 92dBm
2.4GHz Protocol: AFHDS 2A
Modulation: GFSK
Transmission Method: FHSS
Channel Latency: <15ms
Antenna lenghth: 93mm (Double Antenna)
Input Power: 4.0-8.4V
Display: LED Indicator
Online Update: None
Range without interference 1m from the ground:more than 300m
Channel Data: 1500us
Range : 1000 ~ 2000us
Dimensions: 32*22.5*7.5mm
Weight: 3.7g
Certificate: CE , FCC
Binding:
1.First put the transmitter into bind mode (see the transmitter's user manual for instructions on how to activate bind mode.)
2.Connect the receiver to power, the receiver's LED will start to flash indicating that it has entered bind mode.
3.When the receiver's LED stops flashing the transmitter and receiver have successfully bound.
4.Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.

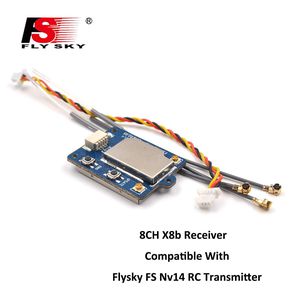

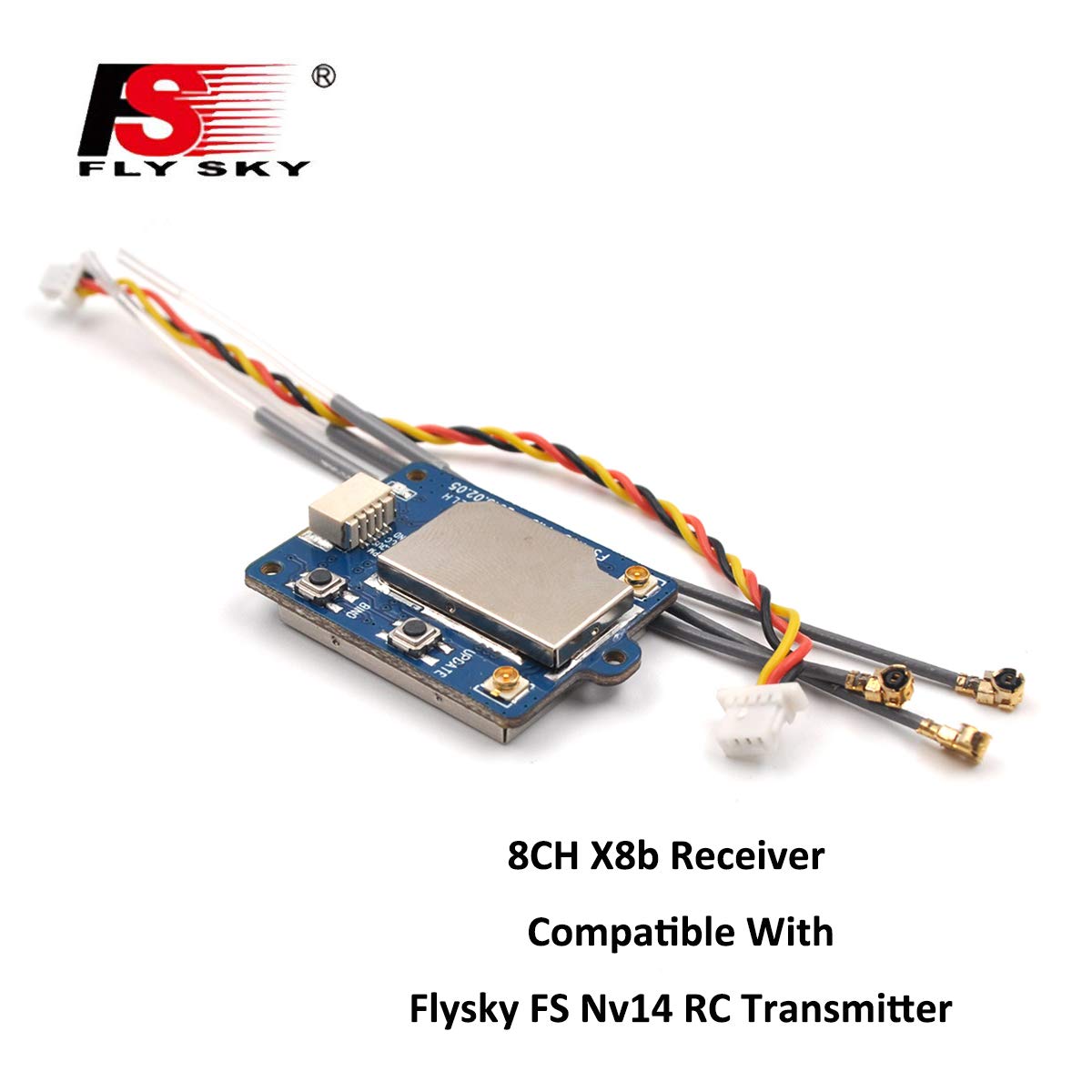

Flysky FS-X8B Receiver, 8CH 2.4G i-Bus/PPM Receiver for FS-Nirvana FS-NV14 FS-i6 FS-i6s FS-i6x FS-i8 FS-i10 Transmitter RC Quadcopter
Price is below average
Current Price
$16.79
Average
$17.07
Min Price
$11.88
Max Price
$21.99
Price dynamics
2%
Description
These ports connect the receiver to various models, component's andflight controllers.
PPMsignal port: Outputs standard PPM signal. i-BUS signal port: Outputs i-BUS signal.
VCC: Power supply voltage from 4.0 - 8.4V.
GND: Connect to ground wire.
Product specifications:
Channels: 8
Model Type: Multi Rotor
PPM/i-BUS
Frequency Range: 2.408-2.475GHz
Bandwidth: 500KHz
Number of Bands: 135
Transmission Power: <20dBm(EU)
Receiver Sensitivity: - 92dBm
2.4GHz Protocol: AFHDS 2A
Modulation: GFSK
Transmission Method: FHSS
Channel Latency: <15ms
Antenna lenghth: 93mm (Double Antenna)
Input Power: 4.0-8.4V
Display: LED Indicator
Online Update: None
Range without interference 1m from the ground:more than 300m
Channel Data: 1500us
Range : 1000 ~ 2000us
Dimensions: 32*22.5*7.5mm
Weight: 3.7g
Certificate: CE , FCC
Binding:
1.First put the transmitter into bind mode (see the transmitter's user manual for instructions on how to activate bind mode.)
2.Connect the receiver to power, the receiver's LED will start to flash indicating that it has entered bind mode.
3.When the receiver's LED stops flashing the transmitter and receiver have successfully bound.
4.Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.
PPMsignal port: Outputs standard PPM signal. i-BUS signal port: Outputs i-BUS signal.
VCC: Power supply voltage from 4.0 - 8.4V.
GND: Connect to ground wire.
Product specifications:
Channels: 8
Model Type: Multi Rotor
PPM/i-BUS
Frequency Range: 2.408-2.475GHz
Bandwidth: 500KHz
Number of Bands: 135
Transmission Power: <20dBm(EU)
Receiver Sensitivity: - 92dBm
2.4GHz Protocol: AFHDS 2A
Modulation: GFSK
Transmission Method: FHSS
Channel Latency: <15ms
Antenna lenghth: 93mm (Double Antenna)
Input Power: 4.0-8.4V
Display: LED Indicator
Online Update: None
Range without interference 1m from the ground:more than 300m
Channel Data: 1500us
Range : 1000 ~ 2000us
Dimensions: 32*22.5*7.5mm
Weight: 3.7g
Certificate: CE , FCC
Binding:
1.First put the transmitter into bind mode (see the transmitter's user manual for instructions on how to activate bind mode.)
2.Connect the receiver to power, the receiver's LED will start to flash indicating that it has entered bind mode.
3.When the receiver's LED stops flashing the transmitter and receiver have successfully bound.
4.Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.
