Description

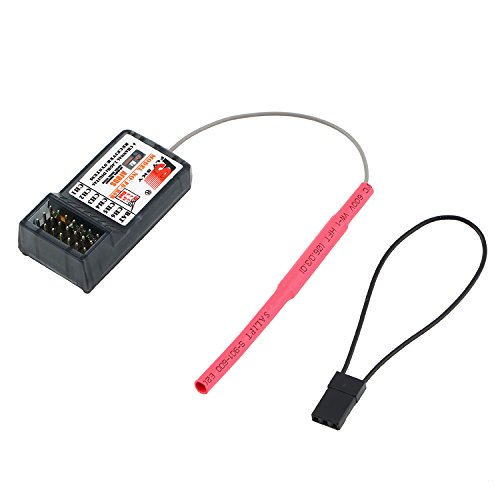

RCmall FlySky FS FS-R6B 2.4G 6 Channel Receiver Radio Model Remote Control Receiver For RC Car FS-TH9X

Features:
Sensitivity:1024 RF.
Receiver sensitivity:-100dbm
Power:4.5-6v dc
Weight:5g ANT
Lenth:26mm
Size:37.6*22.3*13mm
Color:gray semi-transparent cer
For remote control cars
Package Included:
1 X FlySky FS 2.4G 6 channel receiver

Manual link:
https://drive.google.com/open?id=0B8DSGdAr8_31aHA2MEVNUGV1bmM

The supplied transmitter and receiver are already bound at production time so you don't need to do it. If you are using another transmitter or receiver, you have to first bind them before use as described below:
1. Install batteries in the transmitter and turn it off.
2. Connect the binding jumper to the battery port of the receiver.
3. Connect the battery of the receiver to any channel power supply. The red LED with blink indicating that it is in binding mode.
4. Press and hold the bind key of the transmitter and turn it on.
5. The red LED of the received should stop to blink meaning a successful binding.
6. Disconnect the receiver battery.
7. Turn off then back on the transmitter.
8. Connect all the servos to the receiver and then connect its battery.
9. Check if all servos are working as expected.
10. If anything is wrong, restart this procedure from the beginning.
