DSSS&FHSS reduce overall signal interference allow the R9DS to produce a highly constant and stable transmission signal.
Please note:
1.RD9S only work with Radiolink transmitter products: AT9S, AT9, AT10, AT10II.
2.Short push the ID set switch two times within 1 second it can change signal, while the LED change to red, it indicates PWM signal output, the blue/purple LED indicates SBUS signal output.
3.Please make sure your Radio's always 10CH, go to your radio MENU-SYSTEM-CH-SELECT: 10CH
How to Match Code with Transmitter:
1. Put the transmitter and the receiver close to each other within 30-50 centimeters.
2. Turn on the transmitter, then power on the R9DS.
3. There is a black button on the R9DS, press the binding button 1 second and release, receiver start flash to keep light and the signal tower appears on radio's screen, match code successed.
R9DS Specifications:
Signal: SBUS,PWM Channel: PWM 9 channels, SBUS 10 channels
Control Distance: 2900 feet on ground, 2.1miles on air
Working Voltage: 4.8-10V
Working Current: 38-45mA（input voltage: 5V）
Size: 43*24*15mm
Weight: 11g
Package Included:

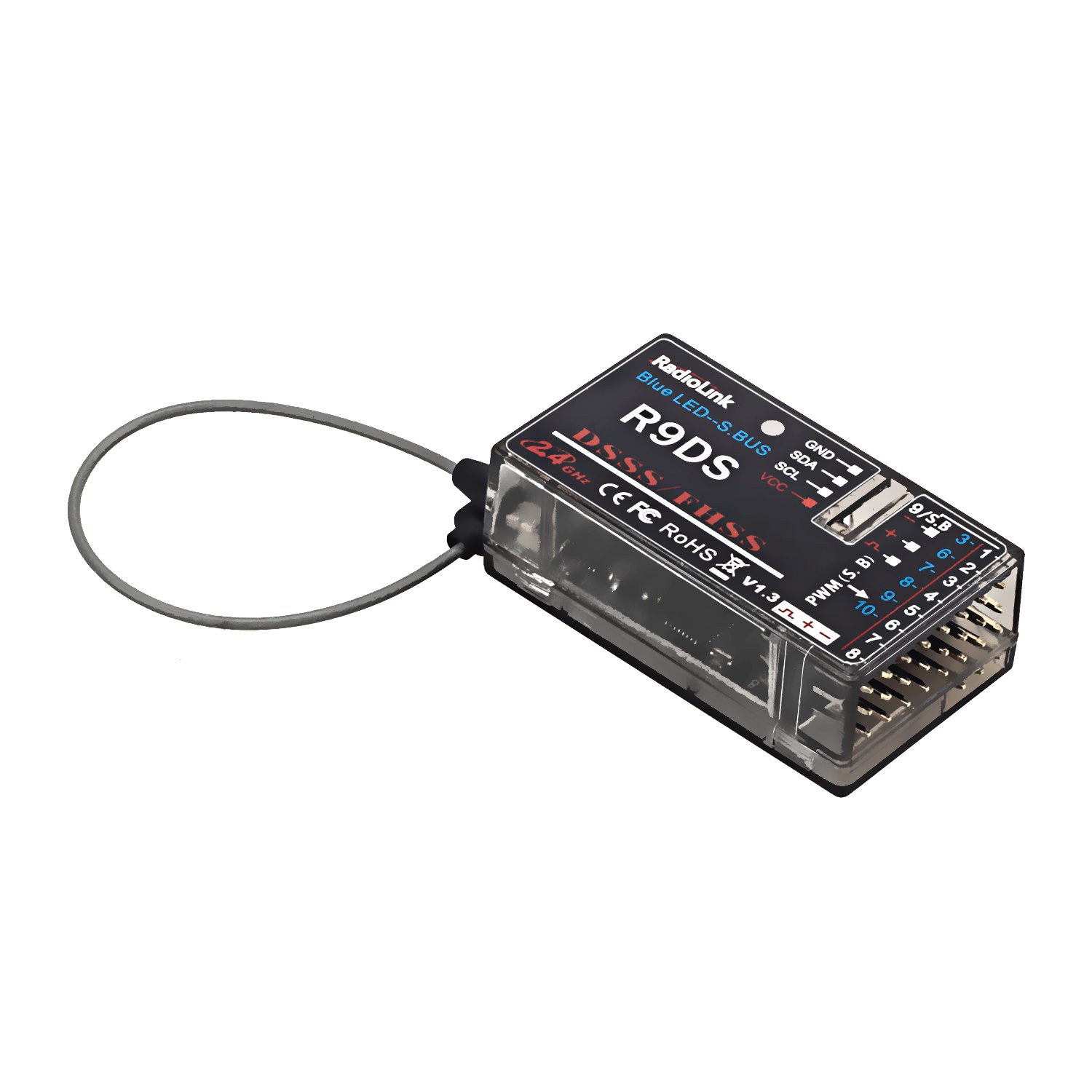

R9DS receiver x 1
