MPU-6050 is the world's first integrated 6 axis motion processing components, compared to many components, from the combination between the axis of gyroscope and accelerometer in bad problem, reduce the size of a large number of packaging. MPU-6050 incorporates 3 axis gyroscope, 3 axis accelerator, and can be connected by I2C ports of other accelerator, magnetic sensors, or other Digital Motion sensor processing (DMP: Digital Motion Processor) hardware acceleration, engine by the I2C port mainly in the form of a single data flow, output to the application of the complete calculus 9 shaft fusion technology.

Specification

Main Chip: MPU-6050

Power supply: 3~5V

Communication mode: standard IIC communication protocol

Chip built-in 16bit AD converter, 16bit data output

Gyroscopes range: +/- 250 500 1000 2000 degree/sec

Acceleration range: ±2 ±4 ±8 ±16g

Package included

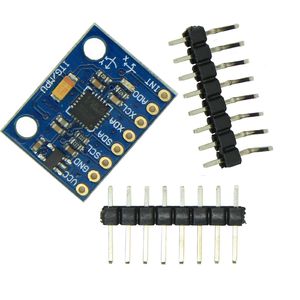

1* MPU6050 6-axis Accelerometer Gyroscope Sensor Module

1* Pin Header kit
