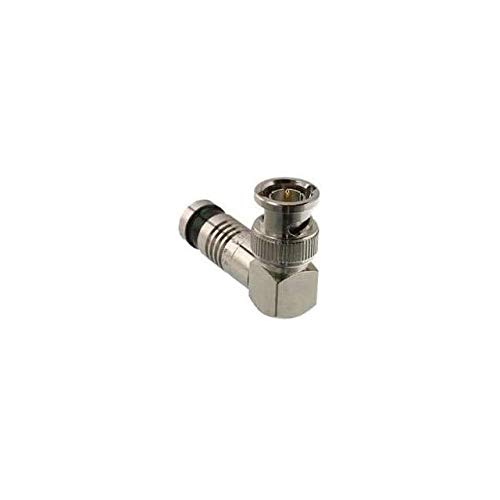

Gem Electronics 351-2CSTP Bnc Comp Seal - Rg59Pvc , 1=10Pk

good afternoon I'm bill pitcher with Jimmy electronics i'm the co-founder and this afternoon i'm going to show you a connector that will guarantee you never to have a failure it is called a BNC compression sealed connector I'm going to use an RG six cable first I'm going to strip the cable then I'm going to cut the center conductor off on an angle which is very important to get a nice sharp point I'm then going to fold the braid back and then the first quality aspect of this connectors you want to get the dielectric inside the little cone of the connector so you roll it around until it seats and then you just twist it and push it on then you take the crimp tool nest it into the crimp tool and compress the thermal plastic into the back of the connector if you follow these steps that connector will never pull off the cable no matter how far you how hard you pull on it it is also waterproo
