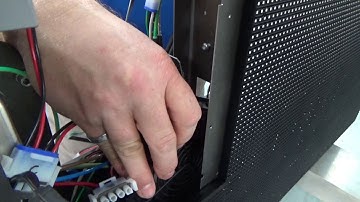

this video will demonstrate how to remove and install an empty fan from a dbx 2821 display to access internal components from the rear you will need to remove the rear panel to access internal components from the front you will need to remove modules begin by using a t8 bit to loosen the screw holding the fan assembly once it is sufficiently loosened pull the fan assembly up to align the keyhole rotate it slightly away from the column until the plate clears and then the fan can be removed completely disconnect the power harness to complete removal the fan is seated on a plate with a notch this notch is used to align the fan properly within the cutout to insert the fan position the fan within the cutout and seat the notch on the column lip rotate the fan towards the column until the assembly clears the screw at is flush against the column finally slide the fan down to fully seated and th
