Description
General Specification - *Transmission Frequency: ISM 1,080~1,200 MHz *Output Frequency: 1080MHz;1120MHz;1160MHz;1200MHz *Manufacturer Suggested Reception Range: Up to 5,000 feet "line of sight" (LOS) outdoor *Modulation Mode: FM *Operating Temperature: -10 ~ +50(Degree C) / +14~ +122(Degree F) *Storage Temperature: -20 ~ +60(Degree C) / -4 ~ +140(Degree F) *Operating Humidity: less than 85%RH
Transmitter Specification - *BandWidth: 18M *Transmission Power: 5000mW *Consumption Current: 1200mA (Max.) *Power Supply: DC +12V *Dimensions(W×D×H): Approx. 3.25" x 2.25" x 0.75" *Weight: Approx. 175 g (6.2 oz) w/o antenna *Transmitter Antenna Weight: Approx. 20 g (0.7 oz), Approx. 30 g (1.1 oz) for high gain antenna *Antenna:SMA
Receiver Specification - *Receiving Sensitivity: ≤-85dBm *Video Output Signal Level: 1.1Vpp±0.2Vpp@75 ohm, S/N >38dM *Audio Output Signal Level: 3.0Vpp±1Vpp@600 ohm *Consumption Current: 180mA(Max.) *Power Supply: DC +12V *Dimensions(W×D×H): Approx. 4.5" x 2.4" x 0.9" (115mm x 60mm x 20mm) *Antenna: SMA *Note: The wireless transmission reception result could vary depending on environmental and topographical conditions, such as the above ground clearance distance, the material/structure of the building environment in between, whether there is a LOS, other electronic and appliances in the same environments, the topology, the temperature and humidity, weather the transmitter or receiver is moving, etc. The LOS range in the specification is the manufacture lab rating in a "perfect" environment. Contact us if you need AC/DC power adapters, the system does not include power adapters.

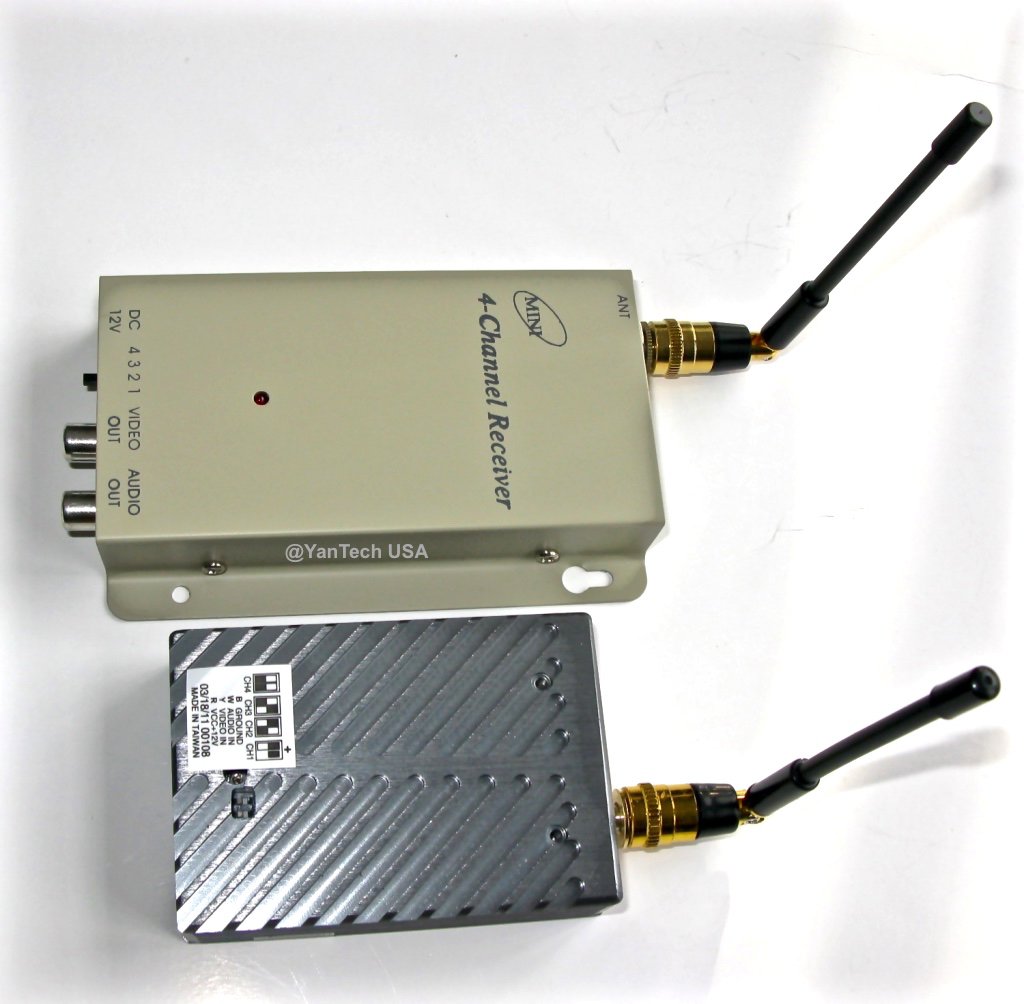

High Power 7000mw Professional 4-Channel Wireless Audio Video TX Transmitter & Receiver Link. by YanTech USA
Current Price
$159.99
Average
$159.99
Min Price
$159.99
Max Price
$159.99
Price dynamics
0%
Description
General Specification - *Transmission Frequency: ISM 1,080~1,200 MHz *Output Frequency: 1080MHz;1120MHz;1160MHz;1200MHz *Manufacturer Suggested Reception Range: Up to 5,000 feet "line of sight" (LOS) outdoor *Modulation Mode: FM *Operating Temperature: -10 ~ +50(Degree C) / +14~ +122(Degree F) *Storage Temperature: -20 ~ +60(Degree C) / -4 ~ +140(Degree F) *Operating Humidity: less than 85%RH
Transmitter Specification - *BandWidth: 18M *Transmission Power: 5000mW *Consumption Current: 1200mA (Max.) *Power Supply: DC +12V *Dimensions(W×D×H): Approx. 3.25" x 2.25" x 0.75" *Weight: Approx. 175 g (6.2 oz) w/o antenna *Transmitter Antenna Weight: Approx. 20 g (0.7 oz), Approx. 30 g (1.1 oz) for high gain antenna *Antenna:SMA
Receiver Specification - *Receiving Sensitivity: ≤-85dBm *Video Output Signal Level: 1.1Vpp±0.2Vpp@75 ohm, S/N >38dM *Audio Output Signal Level: 3.0Vpp±1Vpp@600 ohm *Consumption Current: 180mA(Max.) *Power Supply: DC +12V *Dimensions(W×D×H): Approx. 4.5" x 2.4" x 0.9" (115mm x 60mm x 20mm) *Antenna: SMA *Note: The wireless transmission reception result could vary depending on environmental and topographical conditions, such as the above ground clearance distance, the material/structure of the building environment in between, whether there is a LOS, other electronic and appliances in the same environments, the topology, the temperature and humidity, weather the transmitter or receiver is moving, etc. The LOS range in the specification is the manufacture lab rating in a "perfect" environment. Contact us if you need AC/DC power adapters, the system does not include power adapters.
