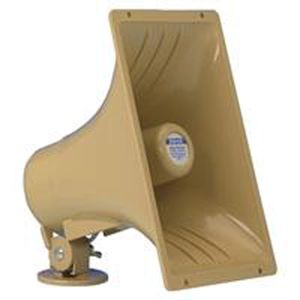

Honeywell Ademco 713 High Power Speaker

So next step in the process is to connect everything. So what we want to do first is our keypads. We've got our keypads twisted together here, and as we said before, the Destiny keypads actually have six wires, unlike the Honeywell keypads that use just four. So there are two per speaker and then four for the data and the power to the keypads. So we've got our six pairs here. And we're going to want to see where these are terminated at the keypad to make sure we land them in the right spot on the board. Once we twist all our pairs then we can land them to the ECP terminals, terminal four through seven on the Vista 21 IP port. You can see on the 21 IP we've got all our terminal screws along the bottom. They are all labeled. First two are AC, we've got Bell for the siren, along with ground, auxiliary, green and yellow for the data, for the ECP, which is these four through seven, and then
