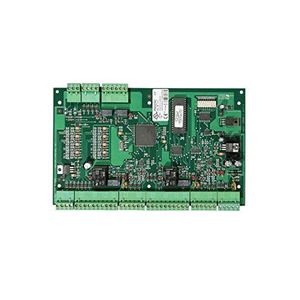

HONEYWELL PRO32R2 Dual Reader Access Control Board

the ic or intelligent controller isn't circuit board or motherboard for access control system and it's also known as the heart of access control system manufactured by honeywell x provides the real-time processing for the connected io interfaces the pro 3200 ic is designed to operate without the need for a pc it can be connected to a windpack host computer using direct serial communication dial-up modem or tcpip network connection the pro 3200 ic holds the database for the subsystem configuration card holders and the event log buffer which is in battery back memory this video is all about how to configure ip parameters for an ic board through web server before adding into management software or server so without any ado let's start the video make sure before power up to ic board configure the s4 s3 s2 and s1 dip switches to on on off and off to set the default tcp slash ip address to 19
