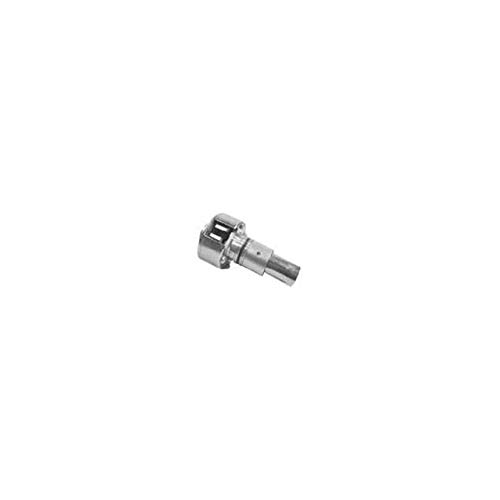

Kaba Access 204202-03-01 L1000 Series Cylindrical Drive Assy 03

[Music] in this video we'll change the combination on Aqaba simplex 1000 lock before you start this procedure make sure the door is open on models with the passage feature make sure the passage feature is disengaged the turn knob or key should be in the vertical position when selecting a combination one button or all five can be used each button can only be used once you can depress two or more buttons simultaneously as a step in the combination Kaba recommends at least three digits in the combination insert the DF 59 control key into the combination change plug assembly and unscrew the cylinder by turning the key counterclockwise remove the combination change plug to gain access to the combination change sleeve turn the outside handle once to the stop position then release the latch should not retract enter the existing combination if this is a new installation use the factory set comb
