Function

Master Laser engraving machine supports both NEJE control software and GRBL software.

Support 'neje Scanner' application, intelligent collection after photo scanning, scanning QR code to automatically transfer printing.

Support the dynamic control laser module developed by Neje, which can support PWM power regulation, low light brightness regulation, laser temperature induction protection. it also supports different power lasers.

Can not work on the stainless steel, alloy, glass, and some reflective materials.

Feature

Depth of engraving (0.5-1mm wood), thickness of cutting(0.5mm).

Daul MCU: For NEJE Controller(Windows , MAC) and GRBL Controller.

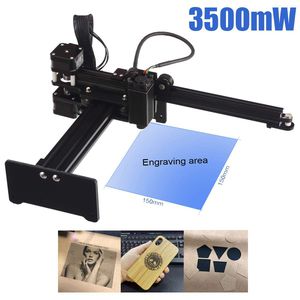

Working area : 150mm x 150 mm or 160mm x 160mm in GRBL Mode.

OFF-Line Working.

Compatible with laser modules(3500, 7W, 20W).

Z-axis,fan,safe Key button Support.

PWM Laser Power Adjustment.

Cloud Gallery Service.

image and text Edit.

Easy Position.

Repeat engraving.

Support BMP,NC(G-code),DXF(CAD), etc... files.

NEJE Scanner(photo share).

Specification

Material: Acrylic + PP + Aluminum

Laser Power: 3500mw (Laser input: about 12v 0.3A)

Laser Wave Length: 405nm

Image Format: .nc / .dxf / .bmp / .jpg / .png etc..

Image Size : 2000 x 2000 pixels / 0.075mm point distance

Support System:WinXP / Win7 / Win8 / XP / Win10 ,Mac OS, android APP(neje scanner)

Machine Supply Voltage: 12V 2A

Product size(L x W x H): 38.00 x 28.00 x 13.00 cm

Package List

1 x Engraving Machine

1 x Protective Glasses

1 x USB Cable

2 x Power Adapter

1 x Wrench

1 x Whiteboard Marker

2 x Wood Block

5 x Test Paper
