Application:Depth Engraving, High-Speed Engraving, g-code drawing, Paper cutting, Wood cutting(<2mm) ...

Engraving material: wood, gray paper card, non-transparent plastic, leather,rubber, alumina oxide,  paint pcba, etc.( flat, opaque and can be burned black)

Depth of engraving (0.5-3mm wood), thickness of cutting(2mm),

It is not possible to directly engrave the metal with strong mirror reflectivity, which may cause injury to the operator or burn the laser.

Can not work on the stainless steel, alloy, glass, and some reflective materials.

Specification:

Wavelength: 450nm

Input: 12V750mA (about 7w)

Output optical power: 2.5W

PWM: 50KHz-20KHz / 3.3V-12V

Temperature Sensor: yes

Best focus range: 0mm-50mm( Recommend 0-10mm)

Max cutting thickness: 3mm(Light diameter:<0.15mm)

Minimum Focus Diameter:0.01mm ( Recommend Focus Range<10mm)

Radiator size: 30*60mm

Material: copper + aluminum

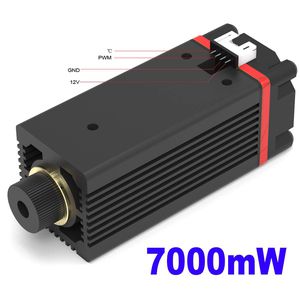

Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)

Drive position: built-in

Is the power adjustable: PWM can be adjusted

Drive protection: surge protection, overvoltage protection

Line length: 300mm

Fan size: 30*10mm

Fan speed: 10,000 rpm

Controllable temperature: less than 60 degrees Celsius

Safety Warning: Please apply this module under the premise of safety protection!

Recommended application machine: NEJE Master

packing list:

1 x module

2 x screw

2 x gasket

1 x control line
