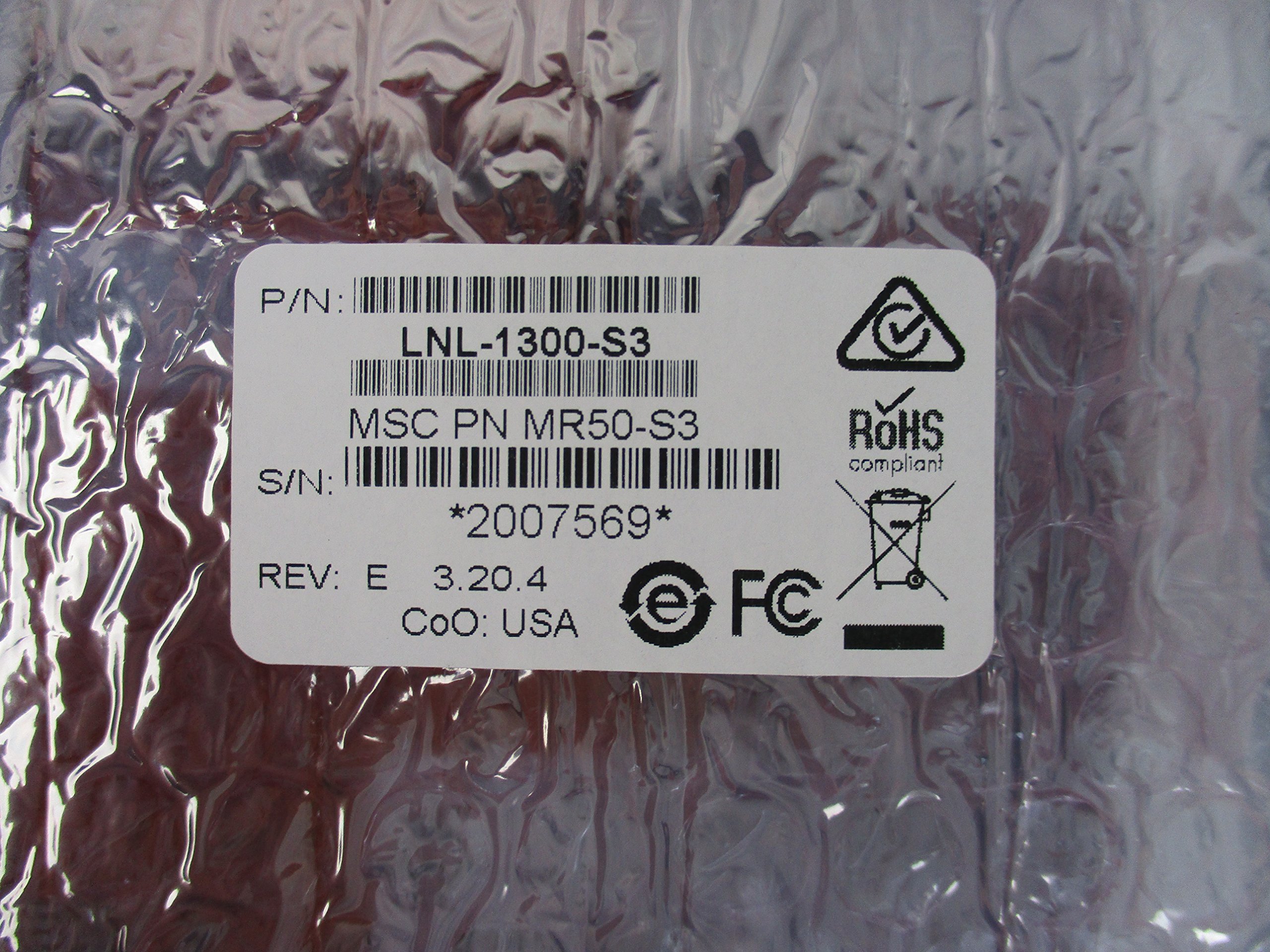

Lenel LNL-1300-S3 - Single Reader Interface Module Series 3

I'm Ted this is Ted's tips thank you for watching here's the tip favor your wiring up our test door here to the mr 52 series 3 board also known as the RSC 2 this is the mr 52 series 3 board for mercury will be powering this 12 volts important to know that in advance so I set my jumper to pass through so that when I put my 12 volt reader on it gets to 12 volts if you're powering at 24 volt and you set up the pass-through hookup a 12 volt reader you're gonna let the magic smoke out don't do that 45 connection TR + 2 goes to plus minus the minus ground the ground here's my inputs 1 & 2 and my reader port and my relay mr 52 series 3 board also known as the RSC 2 completely wired up ready to go 12 volt coming in my 45 channel TR + 2 + - 2 - ground to ground back to the SSP my input and I got my door position switch 1 input 1 my request to exit our non input 2 on the output I got 12 volt comi
