Description
LJ12A3-4-Z/BY Inductive Proximity Sensor Detection Switch PNP DC6-36V ABS plastic shell, LED indicator light, cylinder type, 3 wire system. The brown wire connects to the positive pole, the blue wire connects to the negative pole, and the black wire connects to the reflector. When proximity switch is close to some target object, it will send out control signal. Power supply inverted connecting protection, short circuit protection, non-contact detecting device. Used widely in the machine tool industry, frequency counters and other automatic control system. Model LJ12A3-4-Z/BY Wire Type Cylindrical DC 3 Wire Type (Black, Brown, Blue) Switch Appearance Type Cylinder Type Theory Inductive Sensor Output Type PNP NO(Normal Open) Diameter of Head 12mm Detecting Distance 4mm Supply Voltage DC 6-36V Current Output 300mA Response Frequency 0.5KHz Detect Object Iron Operating Temperature -25°C to +55°C (Non-freezing Condition) Size 6.2 x 2cm/2.4'' x 0.8'' (L*Max. Dia) Cable Length 110cm/43.3" External Material Plastic, Alloy

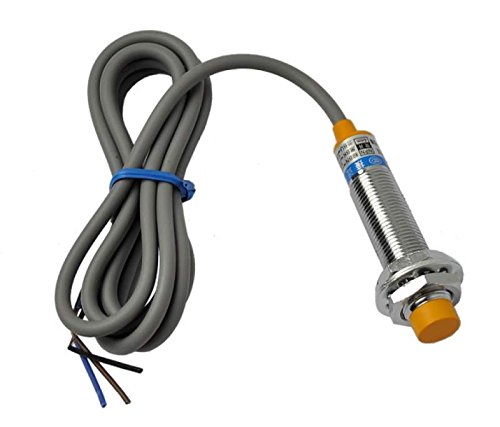

LJ12A3-4-Z/BY Inductive Proximity Sensor Switch PNP DC 6V-36V
Current Price
$9.99
Average
$9.99
Min Price
$9.99
Max Price
$9.99
Price dynamics
0%
Description
LJ12A3-4-Z/BY Inductive Proximity Sensor Detection Switch PNP DC6-36V ABS plastic shell, LED indicator light, cylinder type, 3 wire system. The brown wire connects to the positive pole, the blue wire connects to the negative pole, and the black wire connects to the reflector. When proximity switch is close to some target object, it will send out control signal. Power supply inverted connecting protection, short circuit protection, non-contact detecting device. Used widely in the machine tool industry, frequency counters and other automatic control system. Model LJ12A3-4-Z/BY Wire Type Cylindrical DC 3 Wire Type (Black, Brown, Blue) Switch Appearance Type Cylinder Type Theory Inductive Sensor Output Type PNP NO(Normal Open) Diameter of Head 12mm Detecting Distance 4mm Supply Voltage DC 6-36V Current Output 300mA Response Frequency 0.5KHz Detect Object Iron Operating Temperature -25°C to +55°C (Non-freezing Condition) Size 6.2 x 2cm/2.4'' x 0.8'' (L*Max. Dia) Cable Length 110cm/43.3" External Material Plastic, Alloy
