Description

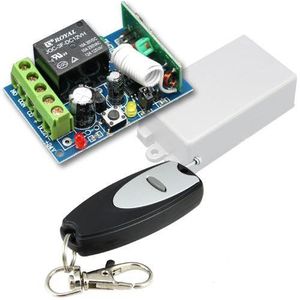

This is the latest model of 1Ch RF controller supports 1527 and 2262 chip set. Plus, it works for multi-channel remote and it can be programmed per channel. It comes with a plastic case.
Key Features of the 1A RF Controller:
Respond to 1527 & 2262 transmitter
Work as individual for 2ch,4ch,6ch,8ch,12ch
Three modes: Toggle, Momentary,Latched
Encode/Decode to avoid interference Relay Output
Specification:
Distance: 50~100M(300 feet)
Power supply: 12V
Encode/Decode: Yes(Learning Code)
Control Type: Quad mode:( Momentary, Toggle)
Relay handling: 10A/125VAC, 10A/30V DC
Receiver Board Size: 3.15" x3.94" x1.2" (8cm x 10cm x 3cm)
Remote Size: 1 3/4" x 1 1/4" x 5/8" (5cm x 3.2cm x 2cm)
Modes:
Toggle: Press=On, Press again=Off
Momentary: Press=On, Release=Off
Latched: Press=On, Release=On (locked)
Jumper setting:
1&2 Closed, 3 open for Toggle mode
2&3 Closed, 1 open for Latch mode
1,2,3 all open, for Momentary mode
Key Features of the 1A RF Controller:
Respond to 1527 & 2262 transmitter
Work as individual for 2ch,4ch,6ch,8ch,12ch
Three modes: Toggle, Momentary,Latched
Encode/Decode to avoid interference Relay Output
Specification:
Distance: 50~100M(300 feet)
Power supply: 12V
Encode/Decode: Yes(Learning Code)
Control Type: Quad mode:( Momentary, Toggle)
Relay handling: 10A/125VAC, 10A/30V DC
Receiver Board Size: 3.15" x3.94" x1.2" (8cm x 10cm x 3cm)
Remote Size: 1 3/4" x 1 1/4" x 5/8" (5cm x 3.2cm x 2cm)
Modes:
Toggle: Press=On, Press again=Off
Momentary: Press=On, Release=Off
Latched: Press=On, Release=On (locked)
Jumper setting:
1&2 Closed, 3 open for Toggle mode
2&3 Closed, 1 open for Latch mode
1,2,3 all open, for Momentary mode
