Mircom Technologies KT-108

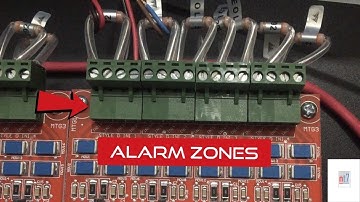

hello viewers and subscribers here we're gonna look at a mere come FX mm panel well look we're gonna look at some basic features or basic things with this panel so this is inside the mir come FX mm here and here the camera is showing the transformer but let's go up to the zones here you're I'll have your alarm zones and here we have the alarm zones bypass with a 3.8 K resistor and that's how they will come from the manufacturer bypass there's a brand new panel here we have our signaling zones and their bypass the same way here down there we have our alarm zone trouble alarm and supervisory for our monitoring panel here are some components but it's not something that we have to know because we never get down to board level if something is wrong with the board we would youwould troubleshoot it and get it a part number and ordered from the manufacturer and replace it so we have one of the
